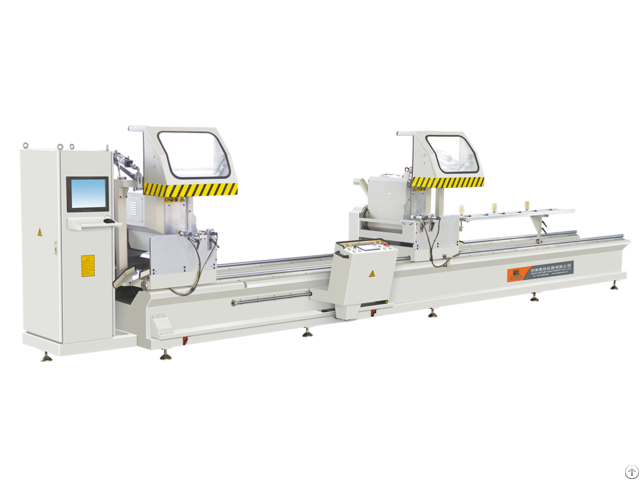

Upvc And Aluminium Double Head Cutting Saw - China

Double Head Cutting Saw

450x3700

Features:

1.90°, inside 45, outside 45 cutting plastic and aluminum profile.

Various angle cutting is available.

2 - Right head moving is driven by motor automatically and easily.

Auto brake device.

3 - Micro cutting length adjustment device ensure precision and easy operation.

4 - With the additional intermediate supporting mechanism of equivalent length, convenient feed and location.

5 - The linear guiding pair ensures steady processing accuracy.

6 - Saw blade rotates smoothly due to high accuracy main spindle.

7 - Saw blade straight feeding from inside to outside stably and precisely by pneumatic cylinder.

Optional Hydro-pneumatic feeding cylinder is available.

8 - Carbide Saw blade ensure high cutting surface precision.

9 - Two hand safety operation Parameter:

Air Pressure: 0.4-0.6MPa

Air Consumption: 200L/min

Input Voltage: 3N~50Hz 380/220V or As Customer Specification

Input Power: 3(Kw)

Saw Blade Diameter: Φ 450

Motor Rotary Speed: 2800r/min

Cutting Height: 200(mm)

Cutting Width: 120(mm) Cutting Length: 45° max 3700mm Min 550mm 90° max 3700mm Min 400mm

Overall Dimension: 4500mm×1170mm×1400mm


Weight: 1500(kg) Main accessory:

• Saw blade UNIKEN

• Solenoid valve YADEKE

• CylinderJoint venture

• MotorAnhui Sanyang

• Air Filter Device: STNC

• Electrical Button and SwitcherSchneider

• AC Contactor and Circuit Breaker Schneider

Standard accessory:

• Saw blade: 2pcs • Mobile work piece supports 2set

• Air Gun: 1pc • Complete tooling : 1set

• Certificate: 1pc • Operation Manual: 1pc
