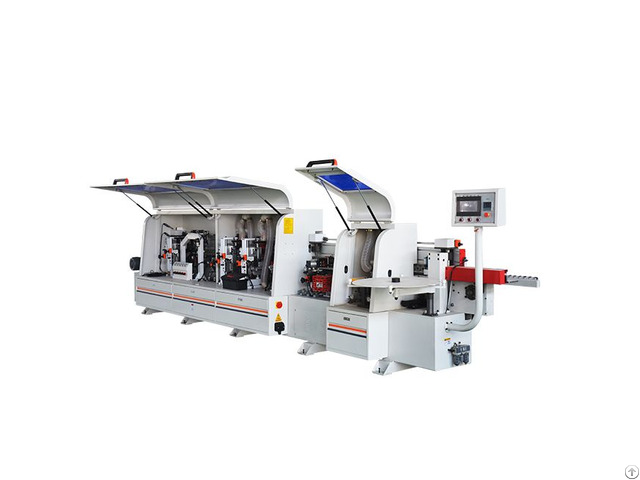

Wood Melamine Pvc Edge Banding Machine - China

price: 20000.00 Dollar US$

Solution Of Wood Melamine PVC Edge Banding Machine

Views: 7 Author: Site Editor Publish Time: 2022-04-29 Origin: Site

The PVC edge banding machine with glue pot can apply edges to straight panels with an automatic feed, and can apply glue directly to panels with both wood and plastic edges, in coils up to 3 mm thick, and strips up to 4 mm thick.

It is equipped with automatic front/rear trimming cut-off, and flush trimming/buffing on both sides of the work-piece.

PVC edge banding machine An pvc edge bander is a power tool that works by gluing and automatically feeding the edges of different types of materials to create a finished look.

Edge bander creates an even, clean finish on the edges of wood or other materials that can be difficult to do by hand.

The melamine edge bander has a table of sorts that can be adjusted for height and angle, a clamp to hold the workpiece tightly in place while it’s being worked on, an adjustable-width glue roller, a conveyor belt that advances the workpiece into position, and a roller that applies pressure to hold things in place.

Solution of pvc edge banding machine 1 - Press the plate tightly, and the front and back tightness is the same, and then the datum and profiling wheel of the trimming tool are leaned on the plate, and finally the tool is adjusted to the desired effect, and the problem is solved.

2 - Your trimming datum did not find the board surface.

The trimming knife can accurately trim the edge banding strip to the ideal line thanks to the horizontal ruler (oblique pressing wheel or arc support plate) and vertical ruler (profiling wheel) beside the trimming knife.

3 - The position of the travel switch of the front head downward signal is incorrect or broken.

If the travel switch cannot be touched or the switch is broken when the plate travels to the predetermined position, then there will be no downward signal from the front head, so it will Nibbling board.

Solution: Adjust the position of the travel switch or replace it.

4 - The lack of the guide wheel of the head against the ruler causes the ruler to grab the board.

Solution: Install new guide wheels.

5 - There are burrs on the contact surface of the head and the ruler.

Solution: Use fine gauze to grind off the electrical fault.

Including host stoppage, slow heating up, program disorder, etc., if it is not eliminated in time, it will burn out the motor and heating tube, or even damage the entire mechanical system.

During maintenance, mainly check the electrical control box, motor, heating tube, delayer, etc.

PVC edge banding machine PVC edge banding machine Wood edge bander are mainly used for banding the edges of various panel furniture.

For instance, cabinets, wardrobes, shelves, custom furniture, office furniture, tables, chairs, windows, doors, cupboards, and other wood products.

Our company is a comprehensive enterprise which is specialized in research and development, design, manufacturing, sale and service.

With advanced production equipment and professional technical staff of research and development, and management.

Which is formed a unique management model and the standardization of production process.


Company Contact:


  • Phone: 18660188728

  • Address: Yu Huang Miao, Shanghe , employment , China

  • Email: Email


Published date: May 26, 2022

  • Business Description: We are a company integrating manufacturing and sales of CNC routers, laser engraving machines, laser cutting machines, plasma cutting machines, cutting plotters, etc.

    The main configuration all adopt top parts imported from Italy, Japan, Germany, etc.

    We adopt international advanced producing technologies to improve our products.

    Our products are widely used in advertising, woodworking, artworks, model, electric, CAD/CAM industry models, clothing, package printing, marking, laser sealing and so on.

    Our company adheres to the Market-Oriented business principles, and implements the business philosophy of "Quality First and Customer First".

    We have set up more than 20 sale and service departments around China which can offer our customers the services of design, fixing, training, maintenance and so on.

    Besides sale in China, our products exports around the world including the Middle East, Africa, Europe and the USA.
