Cnc Router Cabinet Making - China

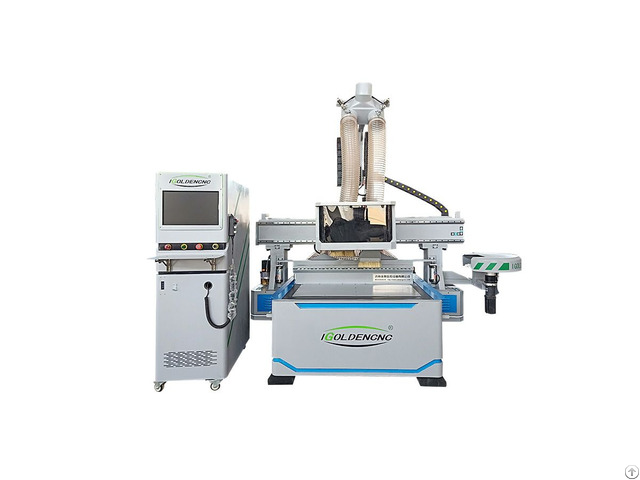

This CNC cabinet making machine is a suitable cnc router for kitchen cabinets making.

Y axis adopts dust proof device, it is helpful to the machine's running life.

This cabinets making cnc router mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry, wood panel, wave board processing, MDF sheet carving, shaped wood cutting, shapping MDF wood, screen, calligraphy tablet design, relief, wood furniture, computer tables, panel furniture, office furniture, instrument industry, and so on.

Features of CNC router cabinet making：

1 - The four air-cooling spindles of the CNC router cabinet making can automatic finish the vertical hole drilling, slot cutting, carving in one step.

2 - The CNC router cabinet making has advantages of saving time, labor and materials, replace traditional CAD draftsmen, splitting men, cutting men, only need 8 minutes to input size design and split.

Automatic layout optimization, improve material utilization.

High quantity automatic design, Automatic type setting, no human intervention.

minimizing error rate to minimum, ensure the quality of the order.

3 - High efficiency: Double table for cabinet making, when finish one work line, it can auto work on another table, greatly improve the work efficiency.

4 - Drive Faster: Two motor driving on Y axis, Fast speed, high efficiency, Max Air move speed to 60m/min.

5 - Operation Steadily: The best linear square guide, double row and four row ball slider, large loading capacity.

Convenient operation, high precision, long life time.

6 - Intelligent control: It adopts the original computer control system, has a break point, power outages, has the function of re-carving after break point and power failure.

7 - Sturdy Durable: Heavy T type of lathe bed, strong rigidity, big strength, smooth rotation, speed for a long time not deformation, not shake.

8 - Independently electric control box with perfect wiring and free moving pulleys.

Advantage of CNC router cabinet making： 1)Perfect Function, automatic feeding, drilling, slot, cutting, automatic unloading in one step.

2)Saving time and labor, materials, replace traditional CAD draftsmen, splitting worker, cutting worker, only need 8 minutes to input size and design and split.

Automatic layout optimization, improve material utilization.

3)The 9.0kw atc spindle with circle atc and 5+4 drilling head.

4)High efficiency: advanced automatic tool change program, without human intervention, program automatically.

Applications of small cnc wood cutting machine: 1 - Woodworking: wooden door and furniture, windows, tables and chairs, cabinets and panels, 3D wave plate, MDF, computer desk, musical instruments, etc; 2 - Advertising: billboard, logo, sign, 3D characters cutting, acrylic cutting, LED/neon channel, literal-hole cut, lightbox mold, stamp, mould, etc; 3 - Die industry: copper sculpture, aluminum engrave, metal molds, plastic sheeting, PVC, etc; 4 - Decoration: : acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper.

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

5)Strong two layers vacuum table with 1325 vacuum holes to suck tightly of the work piece, 24 partition design, strong adsorption materials of different area, greatly improve the work efficiency.

Working Area 1300*2500*200mm Spindle HQD 4.5KW air cooling*2+6KW air cooling*2 Inverter Fuling Motor Servo motor Driver Servo driver Control system LNC system Working area Vacuum absorbed table Guide rails PEK Cabinet Independent syntec Vacuum pump 7.5KW water cooling pump Voltage AC 380V-50HZ Weight 2500KG
