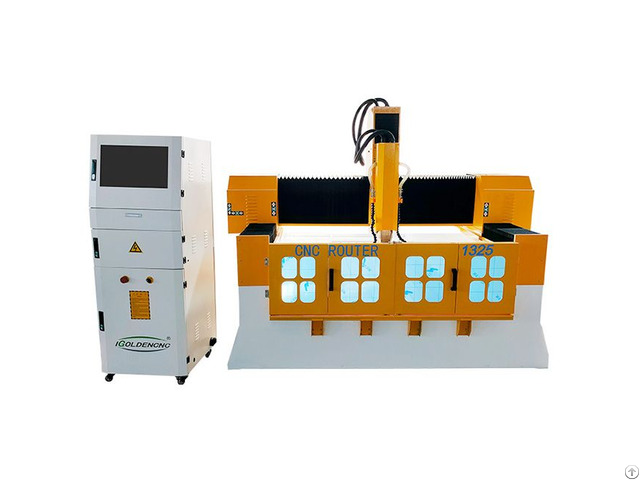

Cnc Router Stone Engraving Machine - China

CNC stone router is a multifunctional stone cutting machine consisting of a cutting tool magazine, a stone conveying table, a positioning cylinder and a lathe.

This is cnc stone router can cut stones at different depths, greatly saving stone resources and also beneficial protect environment.

Various types of stones can be mechanically cut and processed, with high processing efficiency, effective use of small stones, and lower production costs.

CNC stone router is widely used stone equipment, favored by customers.

In the process of machining, the common ways of plate cutting are manual cutting, semi-automatic cutting machine cutting and CNC cutting machine cutting.

Manual cutting is flexible and convenient, but the quality of manual cutting is poor, the size error is large, the material waste is large, the follow-up processing workload is large, at the same time, the labor conditions are bad, and the production efficiency is low.

In the semi-automatic cutting machine, the profiling cutting machine has better quality of cutting workpiece.

Because it uses cutting die, it is not suitable for single piece, small batch and large workpiece cutting.

Although other types of semi-automatic cutting machine reduce the labor intensity of workers, its function is simple and it is only suitable for cutting some parts with regular shape.

Compared with manual cutting and semi-automatic cutting, NC cutting can effectively improve the efficiency and quality of plate cutting, and reduce the labor intensity of operators.

With the development of modern mechanical industry, the requirements of work efficiency and product quality of plate cutting are also improved.

Therefore, the market potential ofstone cnc router is still great and the market prospect is optimistic.

CNC stone router Feature of stone cnc router:

1 It is designed for all kinds of stone, and it can be used for carving marble, granite and other stones.

2 The table has a sinking design, which can make the cnc router stone engraving machine run more smoothly.

3 The Z-axis motor has a brake function, which can prevent the machine head from falling and hitting the table.

4 The dustproof design prevents debris from entering the guide rail, effectively prolonging the service life of the guide rail.

5 With a movable rotary device, it can be used for engraving cylindrical workpieces.

Parameters: Working area 1300*2500*500mm

Spindle HQD 3/4.5/5.5/7.5KW water cooling spindle

Inverter Fuling

Motor Stepper motors

Driver Stepper driver 860H

Control System Nc studio control system

Table Aluminum table with water tank

Oil lubrication With

Limit Omron limit

Transmission XY axis helical rack Z axis Taiwan ball screw

Rail X, Y, Z axis Taiwan HIWIN Square guide rail

Screw Z axis TBI ball screw

Bed Thick steel welded structure

Voltage 3 phase/380V

*Some specifications can be customized upon request, please contact us.

It can process many materials, like Artificial stone, Marble, Granite, Ceramic Tile, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone, Jade, Wood, Plastics, etc.

Scope of Application CNC stone router
