Cnc Timber Cutting Machine - China

We need to know what is a duplex position.

In recent years, with the development of the woodworking industry, the cnc wooden cutting design has been continuously improved to meet the requirements of different processing.

In order to improve production efficiency, different styles of CNC cutting machines have also emerged.

The dual-station four-process CNC cutting machine is also a kind of CNC cutting machine, which is an extension of the multi wood cnc cutting.

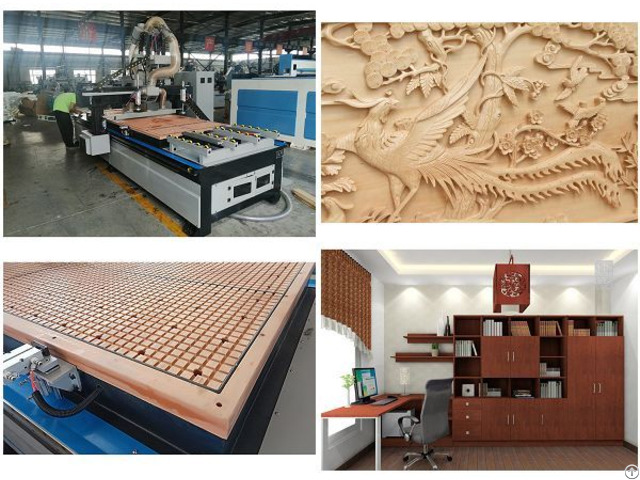

The double-station four-process CNC cutting machine has two processing platforms.

When the material is opened on the A platform, the loading preparation can be carried out on the B platform.

After the A platform is opened, the gantry will quickly switch to the B platform for processing.

At this time, customers can unload, clean, and load on platform A.

On the contrary, platform B will quickly switch to platform A after processing.

cnc wooden cutting design What are the advantages of cnc wooden cutting design? 1 - Since the cnc timber cutting adopts dual-table, when processing products in one station, the other station can also process multiple products at the same time, such as labeling and classification; 2 - After processing, the countertop can be cleaned in time to save time; 3 - It can feed the unused countertops in time to improve processing efficiency and avoid wasting time; 4 - The double-station four-process CNC cutting machine has a simple structure.

Compared with the automatic loading and unloading machine, it has no complicated loading and unloading structure, low failure rate, simple operation and easy operation.

5 - Compared with the automatic loading and unloading machine, the machine has lower cost and takes up less space.

It is easy to connect with custom furniture design and dismantling software, and has excellent compatibility.

In general, the processing efficiency of the dual-station four-process CNC cutting machine is at least 30% higher than that of the ordinary CNC cutting machine.

If you have a large business volume and have requirements for processing efficiency, the dual-station four-process CNC cutting machine is your choice! cnc wooden cutting design features： 1 - The bed is processed by large-scale gantry milling, tempered and quenched at high temperature, and welded by segmented rectangular tubes.

The bed is welded by multiple 6mm thick rectangular tubes.

The side-mounted components between the column and the bed make the equipment run more smoothly; the five-axis machining center mills the connecting reference plane and drills at one time to ensure product accuracy.

Eliminate internal stress, higher toughness, tensile strength and dimensional stability.

Effectively improve the accuracy of the bed and reduce the machining error of the workpiece.

The resistance and stability of the rails are increased.

Reduce the loss of equipment in use.

The accuracy of the machine tool can be maintained for a long time, and it will not be deformed for ten years.

The equipment has good stability and reduces the machining error caused by the vibration of the bed.

2 - The gantry thickened rectangular tube beam can withstand a weight of less than 1000kg, which is tempered and quenched at high temperature and annealed.

High strength, good rigidity, strong toughness, light weight, no deformation and long service life.

The damage to the motion transmission device is small, and the resistance to the drive motor is small, which can maintain the gantry accuracy for a long time, prolong the service life, and reduce the maintenance and use costs.

3 - High-precision transmission system: Taiwan HIWIN guide rail, Japan Yaskawa servo motor drive, Japan SAMPO reducer, Taiwan TBI ball screw.

The positioning accuracy of the engraving machine can reach 0.02mm, the repeat positioning accuracy can reach 0.02mm, and the maximum idle speed can reach 50000mm/min.

Improve transmission accuracy and life, reduce failure rate and maintenance costs, and ensure operator safety.
