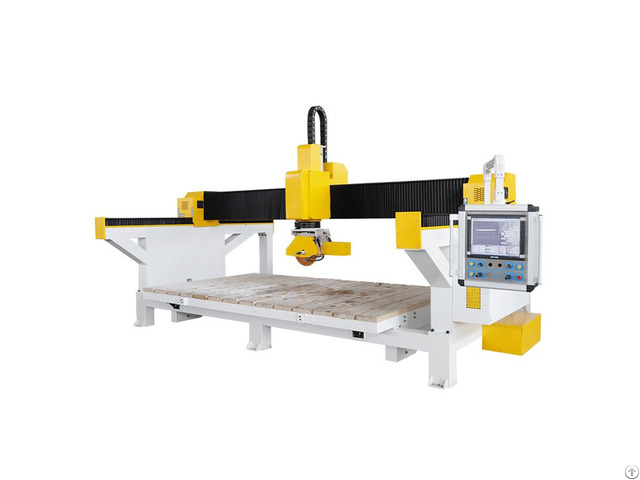

5 Axis CNC Bridge Saw Granite Sink Cut Out Machine Price

Views: 17 Author: Site Editor Publish Time: 2021-12-11 Origin: Site

This 5 axis cnc bridge saw is the complete package, a bridge saw and a CNC all in one, it’s equipped with everything a full-fledged work center needs, 1000 5 axis work center includes functionality of a 5axis bridge saw and a 5 axis cnc bridge saw, among them: 5 interpolated axis, spindle with automatic tool change ISO40 ( ISO 50 optional ), able to reach a maximum of 9000(14000 RPM, with trough-spindle lubrication, up to 50 tool change positions, tilting table up to 85°(Optional), vacuum manipulator system for parts movement during automatic cut process, on-board camera, blade presetting and stone thickness probe, dynamic tool wear compensation, and real time adjustment of tool wear compensation.

5 axis cnc bridge saw 5 axis cnc bridge saw 5 axis cnc bridge saw The machine in details Thisgranite sink cut out machine is a fully interpolated 5 axis work center.

The Y axis is moved by a gantry system.

This guarantees a perfect square of the bridge.

Automatic head rotation from 0° to 400° combined with automatic blade tilting from 0° to 135° and a Z axis of 1000 mm makes it suitable shaping sculptures and polish.

What are the precautions for a 5 axis cnc bridge saw?

There are some problems in the use of equipment that require special attention.

If you do not pay attention to these details, it may affect the use of the equipment.

Generally, when the equipment is started, it needs to be preheated first, and it needs to reach the temperature before it can be put into production.

If the product is not preheated and put into production immediately, because the temperature of the previous batch of products is not high enough, the processed products may have quality defects.

Such products cannot meet the requirements of customers, so naturally they cannot be shipped.

The cost of raw materials is wasted.

The equipment needs to be preheated before use.

Generally, the temperature needs to be above 50 degrees Celsius before it can be put into production.

The products produced in this way, regardless of the previous process or the subsequent process, will not have quality problems.

This is an aspect that should be paid attention to when using the five-axis machining center equipment.

his machine is a fully interpolated 4 or 5 axis bridge saw with automatic tilting 0° to 90° (BK4 head titled 0°to 45° manually).

The first “green” machine in the stone market, “green” standing for: Energy efficiency, Quality, Durability, Costs.

Features of 5 axis cnc bridge saw: The BK machines do the same job and more of a traditional bridge saw with only 25% of the energy.

They are 30% the size of a traditional bridge saw, but keep or exceed the same working area; The X axis of the BK machine is moved by two motors in gantry, that home independently, assuring a perfect square every time The hydraulic table tilts to 85 degrees allowing easy loading of the slabs to cut.

The user interface facilitates the interaction between operator and machine, it’s easy to setup simple cuts (linear) and cut any complex shape (rectangles, ovals, arcs etc.

) imported from DXF files.

Machine is equipped with point laser for copy 2D template and saves in DXF format.

Technical Data Exceptional Details - Italy ESA control system with touch-screen colour monitor to operate - Hiwin linear guide rail used on X, Y, Z axis with high precision and long lifespan.

All guides are protected and automatically greased.

- Camera in a fixed position to photograph the entire slab with a single click - Suction cups for automatic lifting and positioning of cut-to-size pieces granting processing times with minimum waste We are a company integrating manufacturing and sales of CNC routers, laser engraving machines, laser cutting machines, plasma cutting machines, cutting plotters, etc.

The main configuration all adopt top parts imported from Italy, Japan, Germany, etc.

We adopt international advanced producing technologies to improve our products.

Our products are widely used in advertising, woodworking, artworks, model, electric, CAD/CAM industry models, clothing, package printing, marking, laser sealing and so on.

Our company adheres to the Market-Oriented business principles, and implements the business philosophy of "Quality First and Customer First".

We have set up more than 20 sale and service departments around China which can offer our customers the services of design, fixing, training, maintenance and so on.

Besides sale in China, our products exports around the world including the Middle East, Africa, Europe and the USA.
