Taber 5135 Single Abrasive Wheel Rotary Abrasion Tester - China

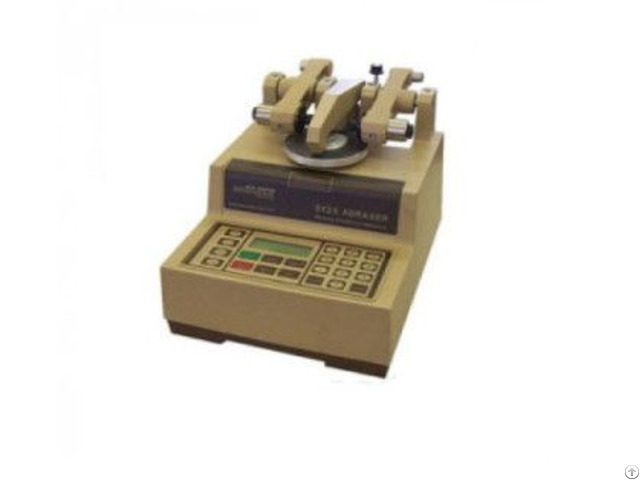

Taber 5135 Single Abrasive Wheel Rotary Abrasion Tester The Taber Rotary Abrasion Tester is available in two models: the 5135 model with a single sample disc and the 5155 model with a double sample disc.

This device is widely used for surface testing of solid materials such as sprayed, painted, plated, and plasticized surfaces, from natural silk to upholstery textiles, metals, leather, rubber, and oil carpets.

Skilled testers can use both models to make repeated, accurate measurements according to the properties of the material itself.

The product is compact and durable.

The sturdy housing is equipped with a control panel with multiple controls, LED digital display and input keys.

The Model 5155 friction and wear tester allows two identical or dissimilar materials to be tested separately or simultaneously for comparison and contrast.

The double sample disc doubles the efficiency.

Models 5130 and 5150, which use 115 V, 50/60 Hz AC power, are also available.

Unique abrasion process

The material to be tested is placed on a turntable and two abrasive wheels are pressed against the material with a certain pressure to abrade it.

The wheels rotate with the rotating surface of the sample disc, generating relative motion and abrasion, while the offset of the wheels' axes from the rotating axis of the disc during rotation generates a sliding motion, thus abrading the material.

When a 30 cm2 sample is subjected to abrasion, the surface material of the sample is abraded by full-angle particles or filaments to form a complete circle.

The Taber 5135 Abrasion Tester is the most powerful accelerated wear tester available.

The test function can be changed by changing accessories.

This durable instrument can be tested repeatedly on the same point on a material up to approximately 0.5" thick that is broken or worn away.

The selection of different abrasive wheels and accessories allows for different tests to be performed to simulate different realistic abrasion conditions.

The Taber 5135 Single Abrasive Wheel Rotary Abrasion Tester's strict controls guarantee reliable results

-Carefully selected abrasives for the abrasive wheels of high quality -The pressure applied to the abrasive wheel is measured in grams.

-stability of the abrasive wheel subjected to strict quality control.

-electronic measurement of the number of rotations of the rotating discs -Vacuum to remove abrasive chips.

Taber 5135 Single Abrasive Wheel Rotation Abrasion Tester Application

Travel cases, carpets, cardboard, clothing, glass, plastic coatings, tiles, metal plating, paints, varnishes, decorative flakes, high-pressure flakes, plastics, textiles, resilient floor mats, traffic paint, anodized layers, blankets, electronic parts, decorative panels, waxes, labels, holsters, dental materials, automotive interiors, resins, furniture, etc.

Taber 5135 Single Abrasive Wheel Rotary Abrasion Tester meets standards

ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109 DIN 53754, DIN 53799 and many other standards.
