Hot Dip Galvanized Fixed Knot Woven Field Fence 2 2mm Wire Diameter - China

Hot Dip Galvanized Fixed Knot Woven Field Fence 2.2mm Wire Diameter Product Description: there are two high-quality fixed knot fence options suitable for virtually any application on the farm or ranch.

These products are considered top-of-the-line as the fixed knot utilizes a separate piece of wire tightly wrapped around the line wire and stay wire, increasing the fences vertical strength allowing for increased post spacing and making it very resistant to animal damage.

Material: low carbon electric galvanized wire, low carbon hot dipped galvanized iron wire, high carbon hot dipped galvanized wire, high strength galvanized steel wire.

Horizontal wires: 2.50mm or customized.

Tensile strength: 1200-1400 N/mm2 - Vertical wires: 2.50mm or customized.

Tensile strength: horizontal wire: 80-90kgs mm2, vertical wire: 40-50 kgs/m Node wires: 2.24mm or customized.

Tensile strength: 400-550 N/mm2 - Surface Treatment: hot dipped galvanized; electric galvanized.

Zinc coated: normally 60-100g/m, max 230-240g /m Electro galvanized zinc coating: 8-15g/m2 - Specification: - - - - Number | Number of line wires | Height of fence | Space between vertical wires | Wire gauge (top and bottom wires) | Roll size | 1 | 13 | 48 inch | 63inch | 12 - 1/2 | 48 inch high 200ft.

long | 2 | 13 | 48 inch | 6 inch | 12 - 1/2 | 48 inch high 200ft.

long | 3 | 9 | 49 inch | 6 inch | 12 - 1/2 | 49 inch high 200ft.

long | 4 | 9 | 49 inch | 12 inch | 12 - 1/2 | 60 inch high 200ft.

long | 5 | 10 | 60 inch | 6 inch | 12 - 1/2 | 61 inch high 200ft.

long | 6 | 15 | 61 inch | 3 inch | 12 - 1/2 | 61 inch high 200ft.

long | 7 | 15 | 61 inch | 6 inch | 12 - 1/2 | 75 inch high 330ft.

long | 8 | 17 | 75 inch | 6 inch | 12 - 1/2 | 78 inch high 330ft.

long | 9 | 14 | 78 inch | 6 inch | 14 | 90 inch high 330ft.

long | 10 | 16 | 90 inch | 6 inch | 14 | 96 inch high 165ft.

long | 11 | 20 | 96 inch | 3 inch | 12 - 1/2 | 96 inch high 165ft.

long | 12 | 20 | 96 inch | 6 inch | 12 - 1/2 | 96 inch high 165ft.

long | 13 | 20 | 96 inch | 12 inch | 12 - 1/2 | 96 inch high 165ft.

long | - - - - Characteristics: 1 - Field fence we offer have innovative and firm structure, flat surface, uniform opening and good integration.

2 - This product offers good flexibility; Good pressure resistance, corrosion resistance and weather resistance properties and can serve for a very long time.

Even the cut pieces will not deform under pressure.

3 - It has excellent corrosion resistance and anti-oxidizing property.

Unlike the welded wire mesh fences with the welding spots getting easily broken, our grassland fences are firm forever once installed and make the best materials for protecting grassland, forestry, highway and environments.

Application: 1 - widely used in prairie, forest and agriculture, 2 - In the protecting of the ecological balance, 3 - Goat field fencing is a kind of mesh used in cattle, goat, deer, and pig.

4 - It is used for grassland, pastures, protection of ecological projects.

5 - Grassland, forestry, highway and environment.

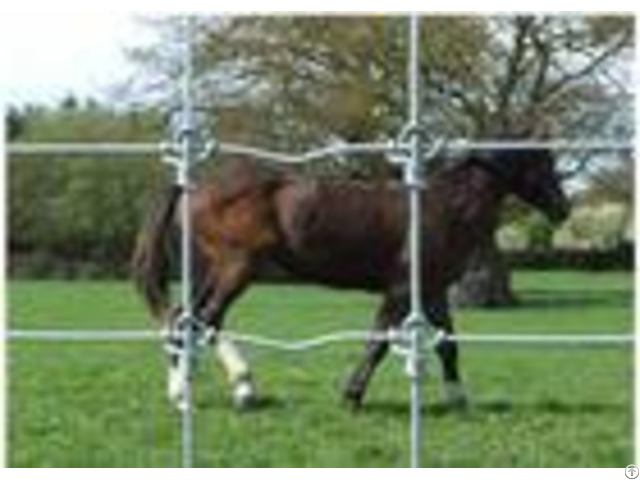

Picture Show:

Company Contact:

• Posted By: Anping Yaqi Wire Mesh Co.,Ltd

• Phone: 86-311-85902971

• Address: renzhuang industrial area, anping town, hengshui city, hebei province, china, Hengshui , Hebei , China

• Email:

• Website: https://www.welded-meshfencing.com

• Business Description: Anping Yaqi Wire Mesh Products Co., Ltd. was founded in 2001 - It is a professional enterprise in research and development, production and sales of various wire mesh and metal products, is a wire drawing, galvanized, meshes deep processing industry and trade integration of large enterprises.
