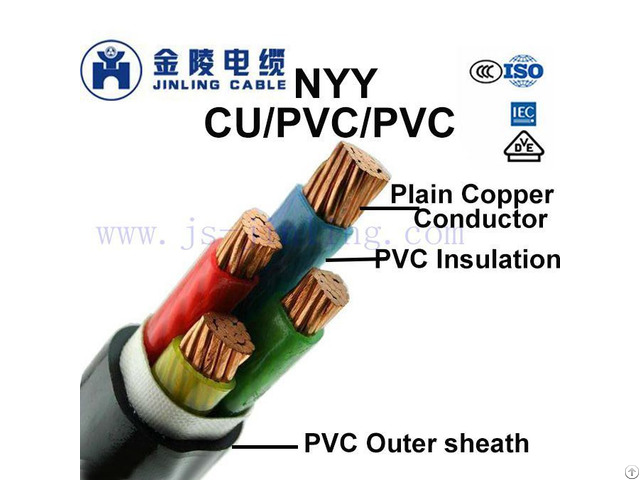

NYY CU/PVC/PVC Low Voltage Power Insulted Cable Construction:

Solid or Stranded Copper Conductor, PVC Insulation, PVC Outer Sheath

NYY CU/PVC/PVC Low Voltage Power Insulted Cable Standard:

IEC60502-1

NYY CU/PVC/PVC Low Voltage Power Insulted Cable Application:

NYY cables are used for electricity supply in low voltage installation system, Iec 60502-1 cables are

suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching

stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

NYY Cu/PVC/PVC Low Voltage Power Insulted Cable Technical Data:

Conductors: Copper or Aluminium conductor, round solid (Class 1)or standed(Class2) copper wire

Test Voltage: 4000V

Working Temperature: -5-70 º C

Short-circuit max.

Conductor temperature: 160°C

Insulation resistance: 20 MΩ x km NYY Cu/PVC/PVC Low Voltage Power Insulted Cable Colour Code: Colour Code(1)

1 Core : Red or Black

2 Cores : Red, Black

3 Cores : Red, Yellow, Blue

4 Cores : Red, Yellow, Blue, Black

5 Cores : Red, Yellow, Blue, Black, Green

Above 5 Cores: Black Cores with White numerals

Colour Code (2) :

1 Core : Brown or Blue

2 Cores : Brown or Blue

3 Cores : Brown, Black, Grey

4 Cores : Blue, Brown, Black, Grey

5 Cores : Green/Yellow, Blue, Brown, Black, Grey

Above 5 Cores: Black Cores with White numerals NYY Cu/PVC/PVC Low Voltage Power Insulted Cable Parameter:

Section Conductor Diameter Insulation Thickness Sheath Thickness Overall Diameter Cable Weight

No.

xmm² mm mm mm mm Kg/Km

Single Core PVC Insulated Power Cable

1x4 2.6 1 1.4 7.5 95

1x6 3.1 1 1.4 8 120

1x10 4 1 1.4 9 165

1x16 5 1 1.4 10 230

1x25 6.3 1.2 1.4 12 340

1x35 7.4 1.2 1.4 13 450

1x50 8.8 1.4 1.4 14.5 570

1x70 10.6 1.4 1.4 16 800

1x95 12.4 1.6 1.5 18.5 1070

1x120 14 1.6 1.5 20 1300

1x150 15.5 1.8 1.6 22 1600

1x185 17.4 2 1.7 24 1980

1x240 20.3 2.2 1.7 27 2560

1x300 22.7 2.4 1.8 30 3180

1x400 25.4 2.6 1.9 33 4060

1x500 28.8 2.8 2 37 5140

1x630 30.4 2.8 2.2 42 6600

Two Cores PVC Insulated Power Cable

2x1.5 1.6 0.8 1.8 12 205

2x2.5 2 0.8 1.8 13 250

2x4 2.6 1 1.8 15 330

2x6 3.1 1 1.8 16 400

2x10 4 1 1.8 18 525

2x16 5 1 1.8 20 720

2x25 6.3 1.2 1.8 24 1030

2x35 7.4 1.2 1.8 26 1320

2x50 8.8 1.4 1.8 29 1670

2x70 10.6 1.4 1.8 32 2290

2x95 12.4 1.6 1.9 37 3060

2x120 14 1.6 2 40 3700

2x150 15.5 1.8 2.2 44 4500

2x185 17.4 2 2.3 48 5570

2x240 20.3 2.2 2.5 55 7180

Three Cores PVC Insulated Power Cable

3x1.5 1.6 0.8 1.8 13 230

3x2.5 2 0.8 1.8 14 280

3x4 2.6 1 1.8 16 380

3x6 3.1 1 1.8 17 470

3x10 4 1 1.8 19 630

3x16 5 1 1.8 21 880

3x25 6.3 1.2 1.8 25 1280

3x35 7.4 1.2 1.8 27 1660

3x50 8.8 1.4 1.8 30 2110

3x70 10.6 1.4 1.9 35 2980

3x95 12.4 1.6 2 40 3930

3x120 14 1.6 2.1 43 4780

3x150 15.5 1.8 2.3 48 5880

3x185 17.4 2 2.4 52 7230

3x240 20.3 2.2 2.6 59 9390

3x300 22.7 2.4 2.7 65 11620

3x400 25.4 2.6 3 72 14730

3+1 Cores PVC Insulated Power Cable 3 (mm) 1 (mm) 3 (mm) 1 (mm) 3x 16/10 5 4 1 1 1.8 22 1000

3x 25/16 6.3 5 1.2 1 1.8 26 1460

3x 35/16 7.4 5 1.2 1 1.8 28 1830

3x 50/25 8.8 6.3 1.4 1.2 1.8 32 2410

3x 70/35 10.6 7.4 1.4 1.2 1.9 36 3360

3x 95/50 12.4 8.8 1.6 1.4 2.1 41 4440

3x120/70 14 10.6 1.6 1.4 2.2 46 5580

3x150/70 15.5 10.6 1.4 1.2 2.3 49 6580

3x185/95 17.4 12.4 1.6 1.4 2.5 54 8200

3x240/120 20.3 14 1.6 1.4 2.6 61 10570

3x300/150 22.7 15.5 1.8 1.6 2.8 67 13020

3x400/185 25.4 17.4 2 1.6 3.1 75 16560

Four Cores PVC Insulated Power Cable

4x1.5 1.6 0.8 1.8 14 265

4x2.5 2 0.8 1.8 15 325

4x4 2.6 1 1.8 17 450

4x6 3.1 1 1.8 18 560

4x10 4 1 1.8 20 770

4x16 5 1 1.8 23 1080

4x25 6.3 1.2 1.8 27 1580

4x35 7.4 1.2 1.8 30 2070

4x50 8.8 1.4 1.8 34 2680

4x70 10.6 1.4 2 38 3760

4x95 12.4 1.6 2.1 44 4960

4x120 14 1.6 2.3 48 6110

4x150 15.5 1.8 2.4 53 7450

4x185 17.4 2 2.6 58 9220

4x240 20.3 2.2 2.8 65 11900

4x300 22.7 2.4 3 72 14730

4x400 25.4 2.6 3.3 81 18830

Multi-Cores PVC Insulated Power Cable

5x1.5 1.6 0.8 1.8 15 300

7x1.5 1.6 0.8 1.8 16 360

10x1.5 1.6 0.8 1.8 19 460

12x1.5 1.6 0.8 1.8 20 510

14x1.5 1.6 0.8 1.8 20 570

19x1.5 1.6 0.8 1.8 22 710

21x1.5 1.6 0.8 1.8 23 770

24x1.5 1.6 0.8 1.8 25 870

30x1.5 1.6 0.8 1.8 26 1020

40x1.5 1.6 0.8 1.8 29 1290

48x1.5 1.6 0.8 1.8 32 1520

61x1.5 1.6 0.8 1.8 35 1900

5x2.5 2 0.8 1.8 16 375

7x2.5 2 0.8 1.8 17 460

10x2.5 2 0.8 1.8 20 590

12x2.5 2 0.8 1.8 21 660

14x2.5 2 0.8 1.8 22 740

19x2.5 2 0.8 1.8 24 940

21x2.5 2 0.8 1.8 25 1030

24x2.5 2 0.8 1.8 27 1150

30x2.5 2 0.8 1.8 29 1370

40x2.5 2 0.8 1.8 32 1810

48x2.5 2 0.8 1.8 36 2130

61x2.5 2 0.8 1.8 39
