Steel Wire Mesh For Tunnel Support - China

Steel wire mesh for tunnel support

Construction Steel Mesh

Tunnel reinforcing mesh name reinforcement mesh, reinforced mesh, welded fabric, welded steel wire mesh.

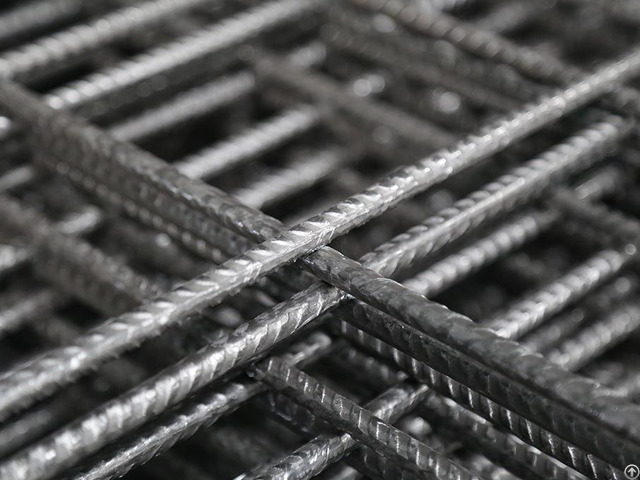

Tunnel reinforcing mesh consist of longitudinal and transverse bars welded to be a 90°reinforcing mesh panel.

After Anchor bolt fitted in the tunnel, then tranport the required reinforcing mesh to the tunnel to install it.

It need to be welded firmly anchor bolt and reinforcing mesh sheet at the intersection by welding machine and welded the joint of the each reinforcing mesh sheet together, so that the whole tunnel reinforcing mesh sheet has more mechanism and integrity.

According to the international JTG70-2004 ruled, ribbed steel mesh be used during shotcrete, which is beneficial to improve the shearing strength and bening strength of shotcrete, increase cement's punching resistance, resistance to bending fatigue, raise intergirty of shotcrete, reduce the shrinkage of shotcrete and prevent falling blocks.

The Steel Welded Mesh For Construction is always rectangle sheets, and mesh spacing is from 150mm to 300mm.

We always adjust 150mm x 150mm, 200mm x 200mm, 200mm x 250mm, 250mm x 300mm, 300mm x 300mm as mesh spacing.

The connect length of steel wire mesh is not less than 30d( d is wire diameter of steel wire mesh).

The shotcrete protection layer thickness of steel wire mesh is not less than 20mm.

When use double layers steel wire mesh, the distance of double layers steel wire mesh is not less than 60mm.

Company Contact:

• Posted By: Anping Heyou Wire Mesh Products Co.Ltd

• Phone: 86-311-80768128

• Address: Chang'an District, Shijiazhuang, Hebei, Shijiazhuang , Hebei , China

• Email:

• Website: https://www.reinforcedsteelmesh.com/

• Business Description: Heyou Wire Mesh was established in 2009 year, which is a professional manufactory for reinforcement mesh, reinforcing mesh, reinforced mesh.

  Heyou Wire Mesh can produce National Standard reinforcing mesh, Australian/New Zealand Standard AS-NZS4671-2001 Reinforcement Mesh, British Standard BS4483 fabric reinforcement/reinforced mesh, Osterreichische Norm B4200-7 Grids and reinforcing meshes, Germany Standard DIN488 SD Reinforcing Mesh, Normes Francaises NFA35-016 Steel Rebar Mesh and Swiss Standard SIA 16211 S550 Reinforcement Wire Mesh.

  Our production capacity is 2000tons per month.

  Heyou factory has 8 workshops and covers 20000sqm area, with advanced international standard production line and equipments.

  We have a professional production team, a stictly set of Production management system and a complete set of QC system to ensure the products quality.

  We select the raw material from the steel factory which has high reputation in our field.

  When the material is coming to our factory, we will send the sample of the raw material to our laboratory in order to conform it as per contract requirement.

  During production, our quality inspector will be meassured in every link such after drawing wire, cutting wire,after welding.

  Although we inspected weld shearing, tensile strength, yeild strength of the whole mesh panle.

  About the Quality controled, we always adhere to the integrity of the fundamental, strategy of growth through quality.

  Heyou Wire Mesh built and develped the cooperation relationship with new and old business at home and abroad continuosly with our mission of offering products exactly meeting your needs.

  Heyou has competitive price, rich experiences, efficiency and reliability allow us to gain trust and praise from clients worldwide.

  We sincerely welcome you to our factorym,inspect our capacity and start business cooperation based on mututal benefit ad double win strategy!

  We can produce wire mesh according to the customer's requirements.

  We warmly welcome your visit and business inquiry.
