Temperature Measurement Channel - China

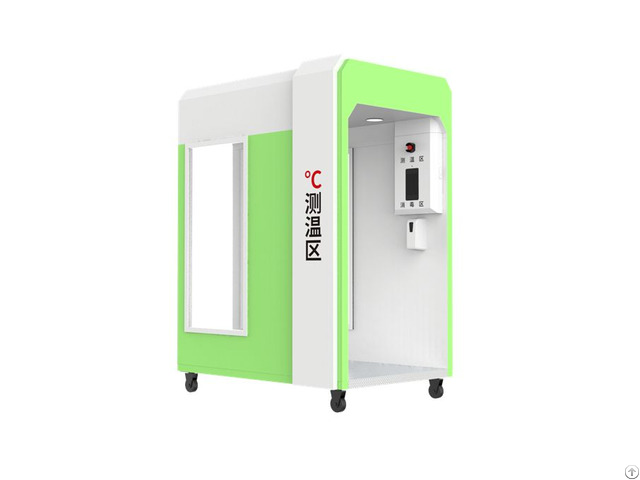

Mobile Temperature Measurement & Sanitization Channel Temperature Measurement Channel AI Face Recognition Channel XGZ Building Technology Company developed Mobile Temperature Measurement & Sanitization Channel is an accurate, convenient and intelligent integrated device for temperature measurement and sanitization.

It integrates a variety of high-tech intelligent means such as microwave detection, infrared spectroscopy and face recognition to make non-contact monitor and sanitize on human body and object.

It can concisely, safely, intuitively and accurately determine whether there is an abnormal temperature of the personnel.

If there is an abnormality, the device will issue an audible and visual alarm.

Each device adopts ergonomics and intelligent operation, which can effectively reduce personnel input in public health emergencies and prevent the spread of large-scale epidemics.

Design Purpose

Following ergonomics, the design style is convenient for adults, children, the elderly, the disabled, wheelchairs, pets, etc.

to be detected and disinfected.

The fully-automatic intelligent control design greatly reduces the human operation and monitoring workload, reduces security pressure, and greatly reduces the work danger of high-frequency contact with people in the public area, and effectively avoids cross infection.

Mobile Temperature Measurement Channel Applicable Scene

This product is designed for temperature-taking and general sanitization of people in public areas, such as: Office building, Station, Community, School, Supermarket, Mall, Factory, Hospital, Hotel.

Model XGZ-01B

Size(cm) 180(L)*110(W)*240(H)

Main frame Prefabricated Assembled

Personalized customization Multiple color options, LOGO customization, etc

Working voltage 110~230V

Working current 50/60HZ

Main frame material Steel / Aluminum alloy

Weight (kg) 365/180

Delivery 12units/40HQ 25units/40HQ Temperature Measurement & AI Face Recognition Equipment

1 - Temperature detection: Temperature detection using infrared thermal imaging technology.

2 - High temperature alarm: The device will automatically alarm when the temperature exceeds 37.3°, which is conducive to the epidemic situation to control and control the key personnel.

3 - Face recognition: Use international leading face recognition algorithm technology to detect faces.

4 - Mask recognition: Voice prompts without masks are prohibited.

5 - Using RK3399 scheme: Powerful CPU, which is conducive to the stable operation of the device in actual scenarios.

6 - Using a binocular camera: Supports live detection, reducing the impact of facial expressions and the risk of photo fraud can be used during the day and at night.

7 - Management platform: Optional supporting management platform to realize personnel management, access control management, attendance data management, temperature measurement data management and other functions.

Equipment Parameters

Temperature Measurement System Core temperature measuring module Made in Germany Human induction method Microwave detection Body temperature sensing method Infrared spectrum type (precise real-time living body detection) Optical spectrum range 8-14µm Body temperature collection distance 0.5m Body temperature collection accuracy ±0.3℃ Body temperature collection range 34~45℃ Temperature collection time 2s Application environment An indoor environment of 15-29° is recommended

AI Face Recognition System Liquid crystal display 8.0 inch, capacitive touch screen, distinguishability: 1280*8 00 OS Android 7.1 CPU RK3399 Number of stored faces >30000 Recognition rate ≥ 99.8% Recognition distance 10-20cm Voice prompt Chinese/English/French/ Spanish, etc Binocular camera RGB 2 megapixels, wide dynamic support, dynamic range 115dB, strong light Fill-in light LED Card identification Optional 4G / WIFI / Bluetooth Optional Voice/video calls Optional Secondary development Open interface

Hand Disinfection Infrared induction spray Atomized System Parameters

Anion purification √

Add water way on the top

Atomizing tablets 4 pcs

Capacity 23.8L

Output of fog 2000ML/H

Rated power 110W

Safeguard Power off protection in case of water shortage

Intelligent constant humidity 43-90%RH, Indoor humidity controllable

Remote control 6m

Timing function 12h

Consecutive humidifying 24h

Sleep patterns √

Screen LED touch screen Xin Guang Zheng Product Advantages

1) CONVENIENT---Flexible movement as required.

2) REASSURED---Food grade disinfection products.

3) EFFICIENT---Automatically face recognition.

4) SAFE---Remote temperature control alarm.

5) PROFESSIONAL---We have more than 23 years production experience and producing top quality products at competitive prices.
