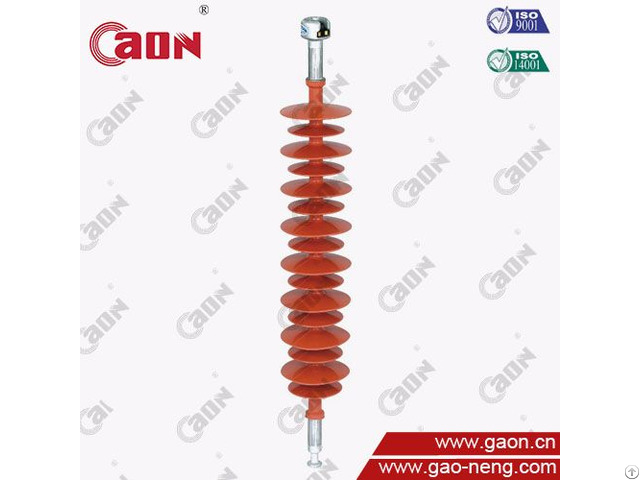

High Voltage Composite Suspension Polymer Insulator - China

price: 10.00 Dollar US$

High Voltage Composite Suspension Polymer Insulator

Products Photos Catalog Voltage Composite Photos Catalog

1 - Size and technical data of High Voltage Composite Suspension Polymer Insulator TYPE: FXBW4-66/70 Rated voltage: 66kV

Rated mechanical bent failling load: 100KN Structure height: 940±15mm

Min.

Electric arc distance: 700mm

Min nominal creepage distance : 1900mm

Full wave lightning impulse withstand voltage (peak value): 410kv 1min power frequency wet withstand voltage not less than: 185kv 2 - Materials of High Voltage Composite Suspension Polymer Insulator

1).

Silicon Rubber for sheds/housing.

2).

Glass-fiber reinforced epoxy resin rod (ECR type) for core.

3).

Hot dip galvanized cast steel for metal fittings.

4).

5000hours aging test from STRI Sweden & Prototype Test & Type Test & Factory Test ( Routine and Sampling Test ).

5).

IEC / ANSI / GB standard.

3 - Company advantage:

(The world's only one insulators maker who can produce all material as below by ourselves)

1-We produce epoxy resin fiberglass rod.

2-We produce HTV silicone rubber.

3-We produce HDG metal fittings.

4-Famous and top brand in China.

5-Superior quality and competitive price.

6-Almost 20 years experience with insulators, surge arresters and fuse cutouts.

7-Exported to more than 35 countries.

8-Guarantee: we can give 15 years wanrantee period after shipment.

9-ISO9001 and ISO14001 and third party support and assurance from Envertec-Europe.


Company Contact:


  • Phone: +86-13588057407

  • Address: No. 96, Dayuan Street, Shuige Industrial Park, Liandu District,, Lishui , Zhejiang , China

  • Email: Email


Published date: July 10, 2018

  • Business Description: Zhejiang Gaoneng Electric Installation Co., Ltd. is one of manufacturers specialized in the field of composite Insulators, surge arresters, fuse cutouts, isolators, epoxy resin fiberglass rods, end fittings of insulators and line fittings.

    On the base of high starting point, strong technical supports and huge capital, our company can completely do research and design new product and have a completely and stronger quality management system
