Iso5470 Taber Abrasion And Wear Test Instrument - China

iso5470 taber abrasion resistance test equipment abrasion and wear test instrument $2, 000.00 / 1 set

Model Number: T270

Power: Electronic

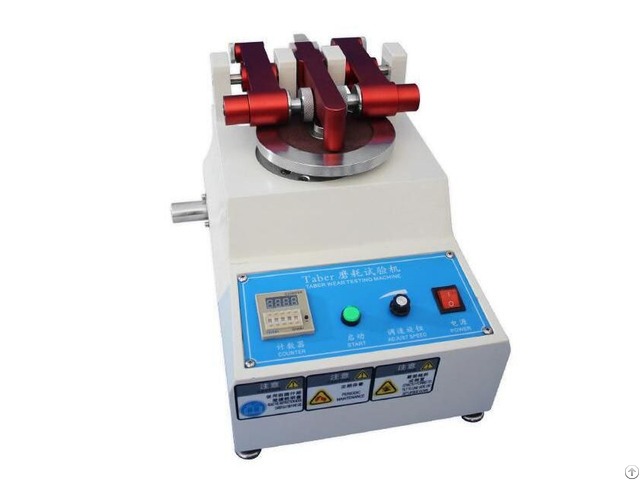

Product name: Taber abrasion resistance tester

Application: Textile

Warranty: 12 Months TABER abrasion resistance tester and wear resistance tester can be replaced by wheel and weight, which apply to the abrasion resistance performance test on fabric, cardboard, paint, leather, tile, glass and natural rubber, method is simple and easy to operate, which has been widely used in various industry's testing laboratory.

Abrasion tests, the material is standard wheel friction after a certain number of turns, evaluate its abrasion resistance material weightlessness rate by calculation.

Abrasion wheel after pre grinding standard method, test results can reach very high consistency.

Core advantages:

Simple operation, display real-time speed, the speed control can be achieved 30-75rpm adjustment, wearing can be preset number of turns.

Arm can match with balance weights, accurate weight balance abrasion arm, to realize the ASTM standard which requires 125 g pressure requirements

Vacuuming mouth height is adjustable, and adapt to different thickness materials, efficient removal of debris, improve test accuracy

Brand motor, mute, low noise, smooth operation Applicable Standards:

ISO 9352, ISO 5470, ISO 7784, ASTM D1044, ASTM D3884, ASTM D4060, GB/T 5137.1, QB/T 2726, DIN 53109 Specifications:

spinning speed: adjustable within the range of 30-75r/min (digital)

The sample surface diameter: 100mm

Sample table diameter: 113mm

setting range of Number of turns: 1-999999

Air pressure: 250g

Weight (based on purchase)Counterweight: 25 0g, 500g, 750g, 1000g

Wheel pressure range: 125g, 250g, 500g, 750g, 1000g, 1250g

Vacuum arm height: Adjustable

power: 220V, 50Hz

Size: 220mm×380mm×300 mm

weight: 20kg

ps: (WLJCDM809)
