Prefabricated Steel Structure Broiler House For Poultry Shed - China

Prefabricated Steel Structure Broiler House for Poultry Shed Cage Layer Chicken House china Broiler Chicken House

INTEGRATED SOLUTION INTRODUCTION

Integration (steel structure building construction + breeding equipment design and manufacturing + environmental control design + installation and after sales) greatly shortens the construction period compared with traditional chicken houses, and the coordination between the various professions is more closely.

It has better heat preservation and insulation.

The chicken house is composed of feeding system, water drinking system, environmental control system and lighting system, which can improve the economic benefits of breeding.

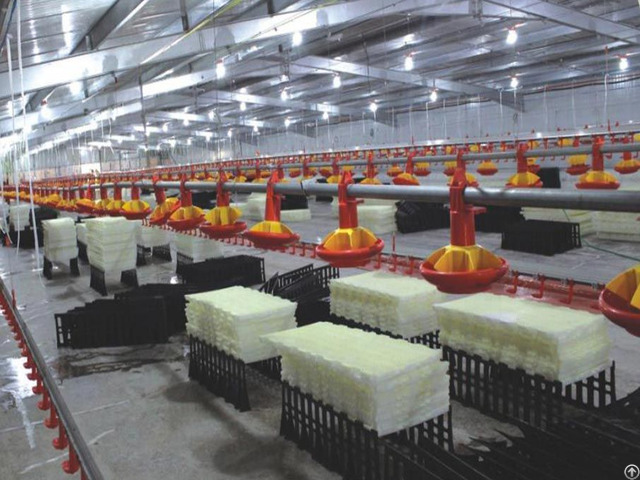

Feed pan is the core of feeding system.

This system deliver feed automatically through motor under the control of feed sensor, which ensure birds feeding during whole growing period.

Feed in the hopper is delivered by the motor, through delivery pipe to fulfill feed pans one by one.

When all of the feed pans are all of feed, control box will stop the motor from working.

The distance between 2 feeding line is about 4m.

This is also the important thing to concern when design the size of chicken house.

Cooling pad system

Evaporative cooling pad system works in the condition of negative pressure, the cooling pad is installed on one side of the wall, fan installed other side.

When air flow through cooling pads, the water evaporation absorbs a lot amount of heat.

The height of cooling pad is 1.5-2.2m, the area of cooling pad in Cage Layer Chicken House is about 6-8 times than the fans.

Automatic ventilation fan system

The main parts of ventilation system is the big fan and small fan.

They are controlled by the control system.

The number of the fans to run was decided by the temperature of the poultry house.

About 200 sqm need 1 big fan and 15-20m need a small fan, this is the standard to design the quantity of fans in chicken house Specifications 50'' box fan 36'' box fan

Flow amount (m3/h) 41000 20800

Size (L*W*H) (mm) 1380*1380*450 1000*1000*450

Noise level ≤65dB ≤64dB

Power 1.1Kw 0.4Kw

Voltage 380V/220V/others 380V/220V/others

Current 2.8A 1.6A

Weight 88Kg 66Kg *The system controls climate condition, can provide fresh air, proper humidity and temperature for birds, ensuring your chickens provide maximum production.

*The system including ventilation fan (box fan or butterfly cone fan) and air inlets.

*If your chicken farm is open, there is no need to use 36'' fan and air inlets, however, you might need curtain system.

Automatic nipple drinking line system

This system can provide fresh and clean water for poultry which is crucial for the growth of Poultry.

The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.

Main Feeding System

This system delivers feed from the silo to the hopper in the Broiler Chicken House.

There is one feed sensor at the end of main feed line which control the motor on and off automatical to release automatic delivery.

Feed of poultry raising farm is stored in the silo, so as to save large amount of package, and also to ensure the health of feed.

Different specifications of silos are alternative to choose according to the daily consumption and the size of silo.

Material of silo consists of galvanized sheet and glass fiber reinforced plastic.

Spraying System

This system effectively cools, humidifies, dedusts and disinfects the henhouse(the temerature is quickly reduced by 3-8 degrees centigrade within a few minutes).

Environment Control System

This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens.

It is imported from Israel can set an optimum working mode according to the local climate and raising environment.

As a professional container house and steel structure chicken house manufacturer in China, our company and products are well received and got high reputation at home and abroad.
