Press Locked Steel Grating - China

price: contact company for price

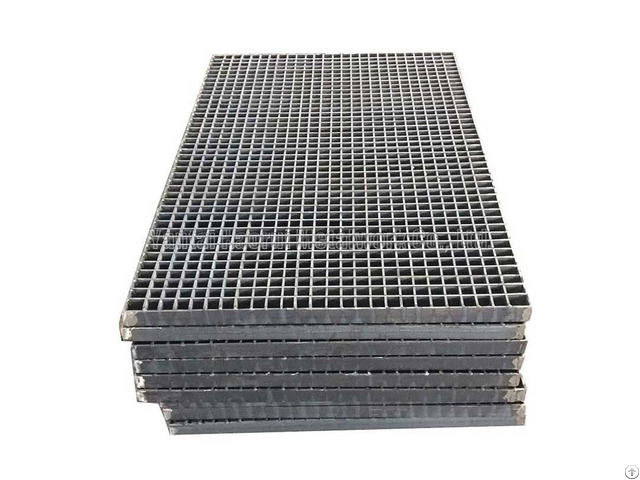

Press Locked Steel Grating

Products Photos Catalog Press Locked Steel Photos Catalog

Press Locked Steel Grating

Painted Steel Grating Supplier

QUALITY STANDARDS

Grating Standard Material Standard HDGStandard

China YB/T4001-2007 GB704-88 GB/T13912-92

U.S.A ANSI/NAAMM ASTM (A36) ASTM (A123)

British BS4592-1995 BS4360 (43A) BS729

Australia AS1657-1992 AS3679 AS1650

SPECIFICATIONS Grade CN: Q235, Q345, USA: A36, UK: 43A

Certification CE, GOST, ISO9001, ISO14001, HSE

Bearing bar type Plain, Serrated (tooth-like), I bar (I section), Serrated-I

Bearing bar size 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X475X8, 100X8mm, etc

Bearing bar pitch 20, 25, 30, 32.5, 34.3, 40, 50, 60, 62, 65mm

Cross bar size 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar) and etc

Cross bar pitch 0, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.

Panel size of Painted Steel Grating 1mx1m3x20ft, 3x24ft, 3x30ft, 5800x1000, 6096x1000, 6400x1000, as request

Surface Untreated, hot dip galvanized, cold dip galvanized, painted, powder, electrostatic coating

Color Silver/Black, painted color as required

Application petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, electric power plants, oil

SURFACE TREATMENT

Hot dip galvanized, Untreated, Painting, Electrostatic spraying

TECHNOLOGY

Press-Locked Grating is specified due to its clean, smooth look as well as supporting the same loads as welded bar grating though not recommended for rolling loads.

Press-Locked is formed using tremendous hydraulic pressure to bond the two close-tolerance slotted bars together, permanently locking the cross bars into the notched bearing bars.

Press-Locked grating is fabricated to meet project requirements.

Press locked bar grating is an extremely versatile product that can be used in a wide range of industrial applications.

It offers the advantage of superior lateral support, particularly when using press-locked steel bar grating (as opposed to the aluminum version).

What's more, press locked-bar grating is durable and very easy to maintain, making it a reliable and long-term grating solution.

The Uses of Press-Locked Bar Grating

1 - Stair treads

2 - Security screens in commercial buildings

3 - Municipal engineering as tree covers, trench covers and drainage covers

4 - Platforms

5 - Walkways in industrial factories or parks

6 - Modular mezzanine structures

7 - Bridges for vehicles and pedestrians

8 - Marine industries as working platform

9 - Suspended ceiling


Company Contact:


  • Phone: 13256389268

  • Address: In the Qing Yang Industrial park District 31 Yunlong mountain Road, Fushan District Yantai City , Sh, yantai , shandong , China

  • Email: Email

Published date: August 21, 2019

  • Business Description: Yantai Haorui Metalwork Co., LTD. is specialized in production of all kinds specification of bonding manual welding steel grating, stainless steel grating, handrails, steel ladder, various kinds of steel structure and all kinds of stamping products.

    Having advanced bonding steel grating equipments & technology and CAD design system for gratings, we can serve the customers with perfect layout design of gratings.

    Since its establishment, the company perennially exports products to Japan, South Korea, Australia, British, and other countries & regions.

    In addition, the products get wide application in domestic hundreds of national key investment projects, The products are well-noted at home and abroad for their superior quality, reasonable price and excellent service.

    Haorui Metalwork conforms to China standard YB/T4001.1-2007, and can also be manufactured to U.S. standard ANSI/NAAMM(MBG531-93) or British s btandard BS4592-1: 1995 - The company is located in Yantai Fushan District where communications and transportation are convenient.

    Customers at home and abroad are warmly welcomed to order Haorui.

    Adhering to the principle of "Quality First, Customer Satisfaction"，we are ready to do our best to provide superior service to the customers.

    Our Products:

    - Press Locked Steel Grating

    - I Type Steel Grating

    - Serrated Bar Steel Grating

    - Painted Steel Grating

    - Plain Type Steel Grating

    - Checkered Stair Treads

    - T4 Steel Grating Stair Treads

    - T3 Steel Grating Stair Treads

    - T2 Steel Grating Stair Treads

    - T1 Steel Grating Stair Treads
