Ringlock Scaffolding Jiangsu Lianjiang - China

PRODUCT ADVANTAGES

Let us go visit

Cost Efficient The reduction of steel consumption is in line with the national policy guidance of low-carbon economy, energy conservation and emission reduction.

In addition to huge social benefits, it also provides customers with reliable, guaranteed and transformable multi-functional equipment, which greatly reduces the procurement cost of enterprises.

With less basic components and modular design, the costs of erection and dismantling, transportation, leasing and maintenance will be saved accordingly, and the assembly is fast and easy.

Enhanced Performance With the use of high strength steel and reasonable mechanical design the bearing load of the standard is up to 200, 000 N.

Reliable Quality The whole product processing goes through more than 20 processes, and each process is carried out by specific machine to reduce the intervention of human factors, especially the production of ledgers and vertical standards.

The full-automatic welding machine is adopted to achieve high product precision and stable and reliable quality.

Life Extension The surfaces of all the scaffolding structure parts are processed by hot-dip galvanizing techniques, which not only improves the service life of the product, but also provides further guarantee for safety, aiming to make it beautiful and highly recognizable.

(service life more than 15 years) Easy Storage It is more convenient for storage, loading, unloading and transportation.

It is suitable for the construction of internal and external frames, cast-in-situ beams, formwork support, scaffolding, bridges, stage erection, etc.

SPECIFICATIONS

Name Type OD(mm) WT(mm) Material

Standard 3m 60\48 3.25 Q355B 2.5m 60\48 3.25 Q355B 2m 60\48 3.25 Q355B 1.5m 60\48 3.25 Q355B 1m 60\48 3.25 Q355B 0.5m 60\48 3.25 Q355B 0.35m 60\48 3.25 Q355B 0.25m 60\48 3.25 Q355B 0.2m 60\48 3.25 Q355B

Ledger 0.3m 48 2.75\2.5 Q235B 0.6m 48 2.75\2.5 Q235B 0.9m 48 2.75\2.5 Q235B 1.2m 48 2.75\2.5 Q235B 1.5m 48 2.75\2.5 Q235B 1.8m 48 2.75\2.5 Q235B

Diagonal Brace 1.5m 42 2.75 Q195 1.2m 42 2.75 Q195 0.9m 42 2.75 Q195 Adjustable U Head Jack 38#600

Base Jack 38#500

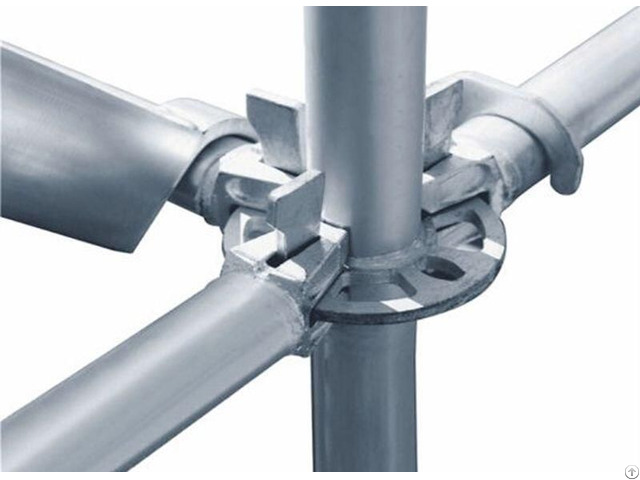

COMPONENTS 01Rosette Rosettes have 8 holes, which connect to ledgers, standards and diagonal braces respectively.

02Wedge Pin 03Ledger Head 04Ledger Ledgers are available in lengths of 2.40 m, 2.10 m, 1.80 m, 1.50 m and 1.20 m.

Ledgers are connected to the vertical Standards using the wedge pin.

This connection is extremely strong and prevents the possibility of loose components.

05Brace Head 06Diagonal Brace Diagonals attach to the rosettes using the same integrated wedge connection as the Ledgers.

07Standard Rosettes are welded every 0.5m in the extension direction, and a connecting rod is welded at one end.

08Base Jack As the first component of the Ringlock system to be assembled, the base jacks ensure the correct transfer of loads to the ground.
