Pva Concrete Fibers - China

PVA Concrete Fibers Reinforcement concrete

Material: 100% Polyvinyl alcohol PVA Fibers

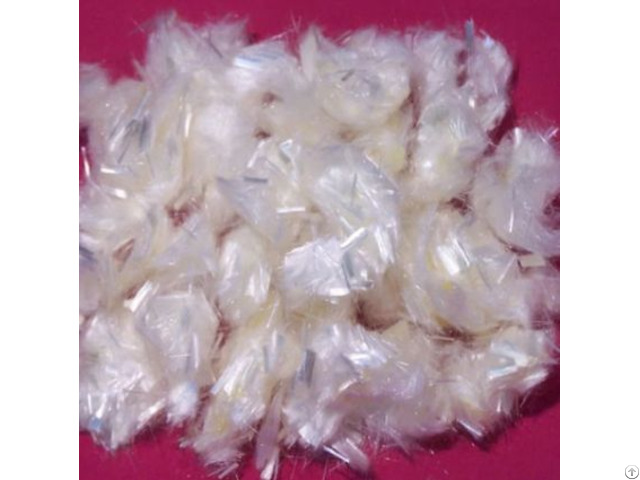

Polyvinyl alcohol fiber (PVA fiber for short) is a synthetic concrete fiber made of high polymerization of high quality polyvinyl alcohol (PVA) and processed with specific advanced technology.

Characteristics of PVA fiber

1 - has very good mechanical properties, its high strength, high modulus, low elongation.

2 - acid and alkali resistance, chemical resistance.

3 - light resistance: under long time sunlight, the fiber strength loss rate is low.

4 - corrosion resistance: fiber buried in the ground for a long time without mold, rot, insects.

5 - fiber has good dispersion: fiber does not stick, good dispersion in water.

6 - fiber has good affinity with cement, plastic, etc.

and high bonding strength.

7 - Non-toxic and harmless to human body and environment.

PVA fiber Technical parameters

Material 100% Polyvinyl alcohol

Use CONCRETE

Density 0.9 g/mL at 25 °C(lit.

)

Melting Point 189 °C(lit.

)

Fiber Length 3mm

Elastic Modulus 3500

Tensile Strength 550Mpa

Ignition Points 160-180

Elongation At Break 10% Min

Acid, Alkali & Salt Resistance Strong

Place of Origin China, Shandong

Brand Name jinhongyao

Product name polypropylene fiber

Application Concrete Road

Shape Curved

Type Monofilament Pp Fiber

Melting Point 160 - 170

Elastic Modulus 3500MPa

Tensile Strength 450MPa

Ignition Points 280-350

Elongation At Break 15%-25%

Acid, Alkali & Salt Resistance 95% Strong PVA fibers reinforcement concrete specification

Name PVA fiber

Material 100% polypropylene

colour white

Melting Point From 165 to 175 degrees Celsius

Fiber Length 3mm, 6mm, 9mm, 12mm, 16mm, 19mm, Tensile Strength >=690Mpa, More than 250 mpa

Min order 1TON

Transport information Size 60mm*40mm*20mm Gross weight 1kg Delivery time 5

Sample quantity for each time 5 20kg package paper box plastic box

Customized service LOGO customized accept accept Outside package customized accept accept Picture customized accept accept Applications of PVA concrete fibers

1 - Polyvinyl acetal fibers are used in industry to make canvas, tarpaulin, filter cloth, transportation belts, packaging materials, work clothes, fishing nets and cables for marine operations.

2 - High-strength, high-modulus filaments can be used as skeleton materials for transportation belts, lining materials for all kinds of hoses, tapes and shoes, as well as making bicycle tire cord.

3 - Since this fiber can resist the alkalinity of cement and has good bonding and affinity with cement, it can replace asbestos as the reinforcing material of cement products.

It can be widely used in cement products, road construction, water conservancy projects, etc.

4 - It can be blended with cotton to make all kinds of clothing and interior products, and can also produce knitted products.

However, the heat resistance is poor, and the fabric made is not stiff, and cannot be washed in hot water.

5 - In addition, it is also used in non-woven fabrics, paper making, etc.

Whatever concrete fiber you need, we've got you covered.

Click below for our factory pricing.

Production process of polyvinyl alcohol fiber

PVA fiber raw materials used polyvinyl alcohol average molecular weight of 60, 000 ~ 150, 000, thermal decomposition temperature of 200 ~ 220 ℃, the melting point of 225 ~ 230 ℃.

PVA concrete fiber can be made by wet spinning and dry spinning.

The heat treatment of polyvinyl alcohol fiber by acetalization treatment can be obtained polyvinyl alcohol acetal fiber.

The acetalization process is to remove the mannitol (sodium sulfate) by washing, from the aldehyde solution (by the aldehyde agent formaldehyde, diluent water, catalyst sulfuric acid, swelling inhibitor sodium sulfate composition) through, and then by washing process.

The tow can also be cut into short fibers and conveyed by airflow to a post-treatment machine for acetalization on a stainless steel screen.

In order to improve the fiber properties, can contain cross-linking agent boric acid polyvinyl alcohol solution (concentration of 16%) for wet spinning, the resulting primary fiber in the alkaline coagulation bath solidification, after neutralization, washing and multi-stage high tensile and heat treatment, then you can obtain the strength of 106 ~ 115cN / dtex filament.
