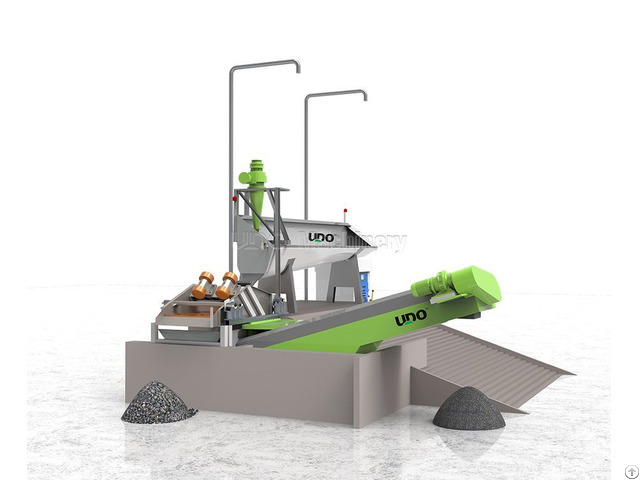

Vibrating Concrete Reclaimer Tfz145 - China

Product Introduction

TFZ145 is an upgraded version of vibrating concrete reclaimer with the advantages of large capacity, rapid speed and no blocking.

It adopts linear vibrating technology and polyurethane screen which has amazing efficient separation ability and abrasion resistance.

Advantages

1 - Upgraded processing capacity, up to 30 m3/h, no material blocking.

2 - Improved open design, easy to clean and maintain.

3 - Independent hopper design, smooth feeding, thorough clean washing and separation.

4 - The overflow outlet is improved, the slurry water contains less sand.

5 - Polyurethane screen has high wear resistance and long service life.

6 - Good sealing performance, low failure rate and long service life.

7 - Small area and flexible design.

8 - PLC fully automatic control, simple operation and maintenance.

Product Parameters

Model TFZ145

Screening Capacity(m3/h) 30

Stone Size(mm) rectangle hole＞φ6, square hole＞φ7

Sand Size(mm) rectangle hole＜φ6, square hole＜φ7

Rotary Screen Power(kw) 2*1.5

Sand Screw Power(kw) 4kw/5.5

Overall Size(mm) 6100*2500*2750

Set Weight(t) 5

No.

of Mixer Trucks ＞45

No.

of Washout Sprinkler 1-2

Electric Control System PLC Auto Control If you are interested, please feel free to contact us
