Il Series In Line Water Filters - Hong Kong

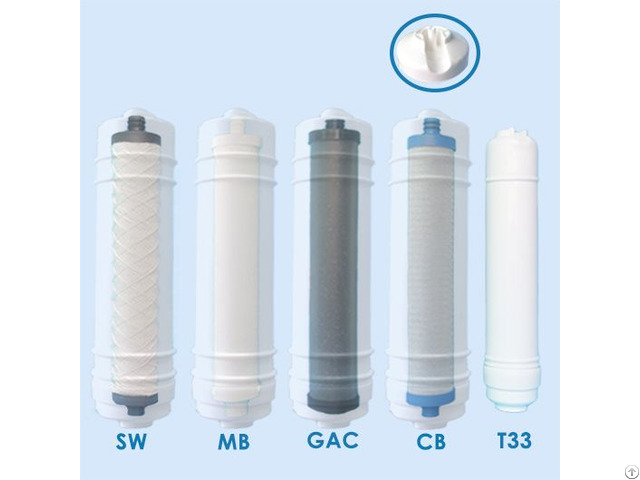

In-line filter cartridges with quick-connection, push-fit connection or threaded connection and the core can be string wound, melt blown, GAC, carbon block or mineral balls, usually use as pre and post filter for RO systems.

Specification

STRUCTURE In-Line Filter Cartridge is suitable for RO systems, work as pre-filter or post filter.

It is made of PP shell with standard in-let and out-let optinos- quick-connect, push-fit and threaded NTP connection.

The inner filter can be carbon block, string wound, pp melt blown, carbon granules and mineral balls.

FEATURES • Quick connection • Easy replacement

• High pressure resistance

• Smaller size

• Food grade MAIN TECHICAL SPECIFICATION • Connection: 1/4" and 1/2" quick connection (push-to-fit), threaded NPT connection

• Maximum operating Pressure: 0.5MPa (72.5psi)

• Maximum temperature: 60℃(140℉)

• Maximum flow rate: 2L/M (0.53G/M)

• Bursting pressure: 2.0Mpa (290psi)

• Maximum service life: 1000G or 6 months for pre-filter, 2000G or 12 months for post-filter T33

• Measurements: 285x62mm for pre-filter, 265x50mm for post-filter T33 TYPICAL APPLICATIONS • Pre & post RO

• Drinking water treatment

• Refridgerator filter replacement

• Houshold and commercial water purifier filter replacement

• Odor, color, free chlorine, organic objects reduction and weak alkalinity

Company Contact:

• Posted By: SF FILTER INT'L LIMITED

• Phone: +85251232688

• Address: Suite A, 12/F, Ritz Plaza, 122 Austin Road Tsim Sha Tsui, Kowloon,, HONG KONG, Hong Kong

• Email:

• Website: https://www.sffilter.com.cn/

• Business Description: SF Filter (Shuangfa) is one of the earliest filter manufacturer in China, established in 1991, product certified by NSF since 2015, WQA membership since 2016, focused on filter cartridges for water/liquid filtration and purification.

  We believe in data, at SF, research and quality control protocols are developed based on performance.

  Our product includes String wound filters, PP melt blown filters, activated carbon filters, membrane pleated filters and water filter system.
