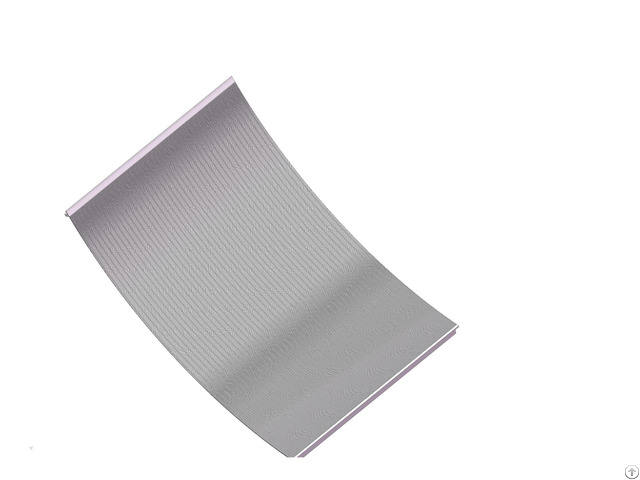

Wedge Wire Sieve Bend Dsm Screen - China

Wedge Wire DSM Screen is also referred to stainless steel sieve bend screen, side hill screens, parabolic screens, run down screens, gravity screens.

It is a curved concave wedge bar type of stationary screen.

The common DSM screen available types are 45°, 60°, 120°, 270°, 300°.

A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

All our wedge wire screens can be supplied in standard material of SS304/ SS316/ SS316L.

Many other material grades are available on request.

A sieve bend screen consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow.

A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

Wedge wire sieve bends are made of stainless steel wedge wires.

They are consist of a concave curved profile wire screen, which is inserted into a stainless steel frame.

The wedge wire sieve bends are manufactured by wrapping and welding stainless steel V-shaped profile wire and support rods.

Then the panel screens are cutting and curved into arc screen.

The wedge wire sieve bends have continuous slots, which has efficient filtering performance.

Forces exerted as materials flows against the curved surface, curved screen structure has better filtering and greater capacity than the wedge wire screen panel.
