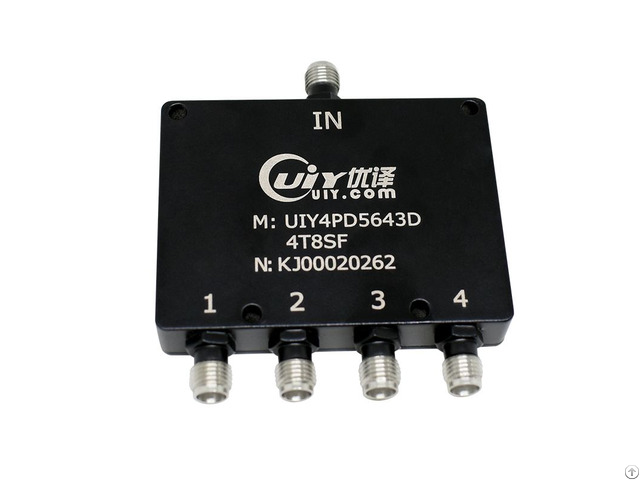

Broadcasting C Band 4 0 To 8 0 Rf Power Divider - China
price: 200.00 Dollar US$
Model Number: UIY4PD5643D4T8SF
Frequency Range: 4.0~8.0GHz
Insertion Loss: 0.8dB (Split 6dB)
Isolation: 20dB
VSWR Input: 1.3
VSWR Output: 1.3
Phase Unbalance: ±3˚
Amplitude Unbalance: ±0.3dB
Forward Power: 30W
Reverse Power: 3W
Connector Type: SMA-F
Temperature: -55 ~ +85°C
Dimension: 56*43*10mm UIY Inc.
provide Low insertion loss, high isolation, high power handling on RF Module.
Exceptional customer service and technical support are on hand to support our customers.
Since 2003, UIY Inc.
has become a critical supplier and partner to major companies serving the Aerospace, Military, Radar, Defense, Medical, Communications and Specialty Test industries.
Company Contact:
- Posted By: UIY Inc.
- Phone: 86-0755-83748888
- Address: New address: No. 8, lane 1, Xintun East Zone, Longgang District, Shenzhen 518172, China, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: August 18, 2022
- Business Description: UIY Inc.
was established in 2003 in Shenzhen, China,with the registered capital of 200 million yuan (about 32 million dollars),as a RF Microwave Componets Manufacturer and Communication Equipment RF Module Supplier.
We specialized in:
RF Isolator / Circulator
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
Welcome partners from all over the world to cooperate with UIY, to feel the entrepreneurship strength in UIY.
Wish to create a beautiful tomorrow with you together!
Contact name: Ms kelly hu
Mob: +8613902992351
