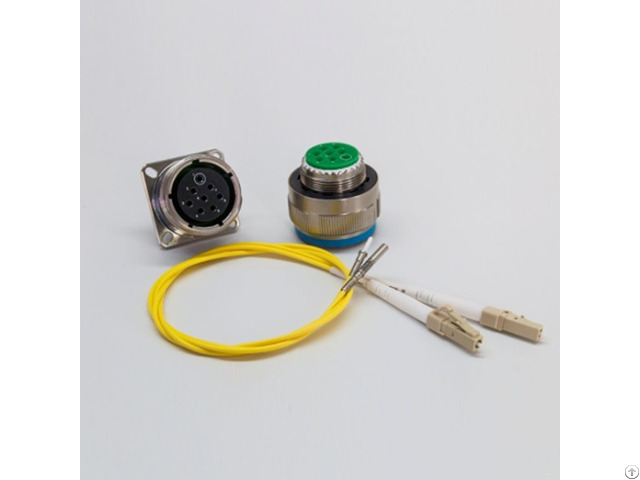

J599Ⅲ Series Optical Fiber Connector - China

Compliant with GJB599B (MIL-DTL-38999) Series Ⅲ Interface The outer housing can be constructed from various materials and coated to accommodate different environmental requirements.

Equipped with a five-key positioning system that offers blind mating and error-proof insertion capabilities.

Features triple-start threads for quick connection, complemented by an anti-loosening mechanism.

Utilizes ceramic ferrules and sleeves to achieve precise optical alignment and coupling.

Offers a selection of tail accessories to meet diverse needs.

Optional adapter sockets (with optional hermetic sealing) are available, allowing for freedom from optical cable constraints.

Mechanical Properties: • Mechanical Life: 500 cycles of insertion and extraction

• Shock Resistance: 980m/s²

• Vibration Resistance: 10Hz to 2000Hz, with an acceleration of 147m/s²

• Tensile Strength: ≥720N (for multi-core cables) Environmental Performance: • Temperature Range: -55°C to +85°C (depending on the optical cable's temperature)

• Salt Spray Resistance: Type K: 500 hours Type F: 48 hours Type W: 500 hours Type MW: 192 hours (for acidic atmospheres)

• Fluid Resistance: Resistant to various fuels, coolants, and other fluids
