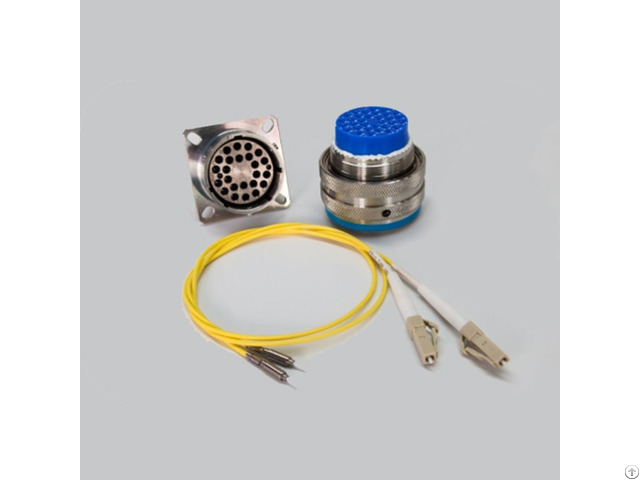

J599a6 Series Optical Fiber Connector - China

Suitable for use in aviation, electronics, naval vessels, weaponry, and other systems where installation space is limited.

Features a rotary quick-lock mechanism for achieving multi-channel optical communication.

The outer housing can be constructed from various materials and coated to suit different environmental requirements.

Equipped with a five-key positioning system, providing blind mating and error-proof insertion capabilities.

Features a bayonet-style structure for quick and easy connections.

Utilizes ceramic ferrules and sleeves to achieve precise optical alignment and coupling.

Mechanical Properties: • Mechanical Life: 500 cycles of insertion and extraction • Shock Resistance: Peak acceleration of 2940m/s² with a duration of 3ms, and a velocity change rate of 5.61m/s • Vibration Resistance: 10 to 2000Hz, with a power spectral density of 0.2G²/Hz, resulting in an acceleration root mean square (RMS) value of 16.4G • Tensile Strength: ≥68N (for contact components compatible with Φ2 optical cables) Environmental Performance: • Temperature Range: -55°C to +125°C (depending on the optical cable's temperature) • Salt Spray Resistance: Type K: 500 hours Type F: 48 hours Type W: 500 hours Type MW: 192 hours (for acidic atmospheres) Optical Performance: • Insertion Loss: ≤0.6dB

• Return Loss: ≥ 20dB @ 850nm ≥ 40dB @ 1310nm

Company Contact:

• Posted By: Gigac

• Phone: +86.18512845338

• Address: Zone 3-502,Haolang Science Park, Chengdu , Sichuan , China

• Email:

• Website: https://www.gigac.com/

• Business Description: Gigac Technology Co., Ltd.It was established in May 2012, which is focus on the Fiber Optical Transceivers Modules and devoted to be the leader of optical transceivers manufacturer in China.

  The Headoffice is in Chengdu city,China.

  It is composed by Operation Center, Sales Center, Research and Design Center, Labratory, Production Line and branch offices in Beijing, Nanjing, Wuhan and Shenzhen.

  GIGAC has implemented ISO9001: 2008 Quality Management System and ISO14001: 2004 Environmental Management System.

  Whole Supplying Chain and Production Line are complying with RoHS6 standard, FCC, CE and other compulsory certification system associated with fiber optic industry.

  With more than 10 years of producing and researching experience, Gigac has developed many variants of optical modules: Full Scale Production from 100M to 1.25G and 10G Bit Rate, release EPON,GPON and 40G in 2013, release 40G QSFP+SR modules in 2014, release SNAP 12 Parellel, UOST/Stratos series, T/R Component in 2015, Release QSFP28 SR, LR4 ,CWDM 4 in 2017 - Now SFP+ 120KM transceivers, GPON, EPON, XGSPON,Combo series are released.
