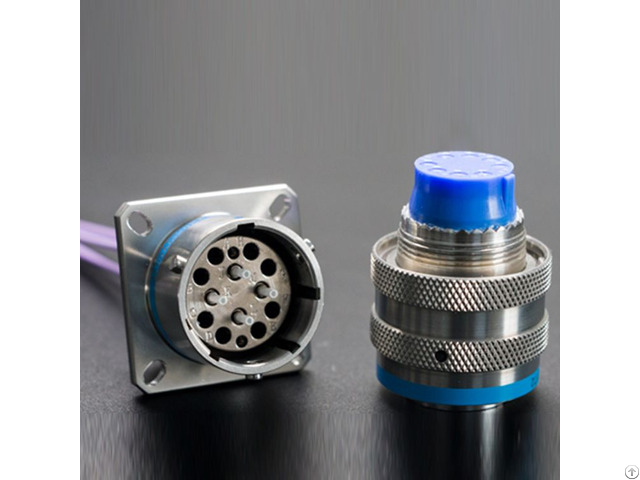

J599e6 Series Expanded Beam Fiber Optic Connector - China

Product Features Compatible with J599III series connector mounting dimensions

Applicable to systems in aviation, electronics, naval vessels, weapons, and other fields with limited installation space

Quick-turn locking mechanism for realizing multi-channel optical communication

Shell available in various materials and coatings to suit different environmental requirements

Five-key positioning for blind mating and error-proof connection

Bayonet-style structure for quick connection

Contacts featuring collimating lenses, non-contact connection, protected end faces against damage, high mechanical durability, large emission spot size, dust insensitivity, and strong environmental resilience Mechanical Properties • Mechanical Life: 2000 mating and unmating cycles

• Shock: Peak acceleration of 2940m/s² with a duration of 3ms, and a velocity change rate of 5.61m/s

• Vibration: 10Hz to 2000Hz, power spectral density of 0.2G²/Hz, with an acceleration root mean square (RMS) value of 16.4

• Tensile Strength: ≥68N (for 2mm contact jumper) Environmental Performance • Temperature Range: -55℃ to +125℃ (depending on the optical cable temperature)

• Salt Spray: Class K: 500h, Class F: 48h, Class W: 500h, Class MW: 192h (acidic atmosphere)

• Hermeticity (suitable for hermetic adapter sockets): Gas leak rate ≤1×10-9Pa.

m3/s, with an internal and external pressure difference of 1 atmosphere Optical Performance • Insertion Loss: ≤0.6dB @850nm; ≤0.8dB @1310nm

• Return Loss: ≥20dB @850nm; ≥45dB @1310nm
