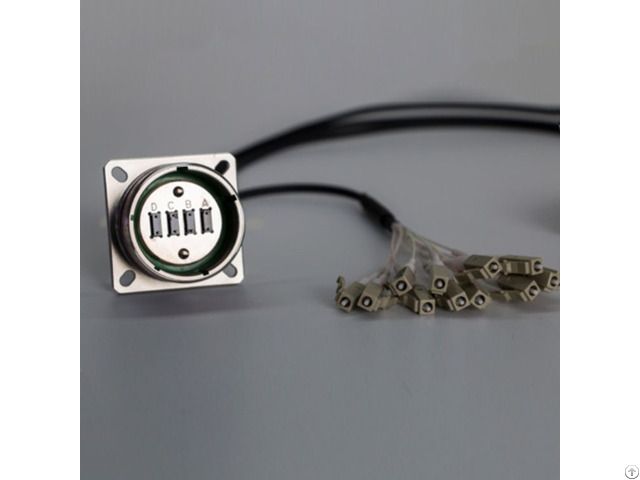

J599mt Series Fiber Optic Connector Aviation - China

This series of products is an environmentally resistant, high-density circular fiber optic connector developed based on the GJB599Ⅲ series, utilizing 12-core and 24-core MT contacts.

It employs a three-stage guidance and positioning system, featuring five-key identification, error-proof insertion, anti-oblique insertion, and blind mating capabilities.

The outer shell can be made of different materials and coatings to adapt to various environmental requirements.

Mechanical Properties • Mechanical Life: 500 cycles of insertion and extraction

• Shock: Acceleration of 490m/s² with a duration of 11ms

• Vibration: 10Hz to 2000Hz, Power Spectral Density of 0.06g²/Hz 文心大模型3.5生成 Environmental Performance • Temperature Range: -40℃ to +85℃

• Salt Spray: Class K: 500 hours Class F: 48 hours Class W: 500 hours Class MW: 192 hours (acidic atmosphere) Optical Performance • Insertion Loss: ≤0.6dB
