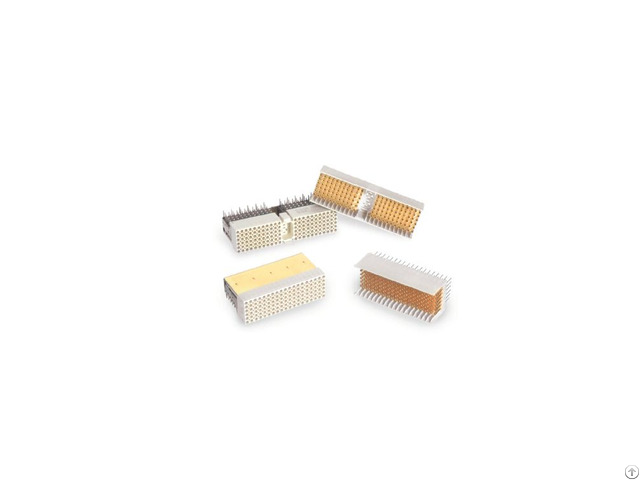

K2 Series High Speed Backplane Connector - China

Product Features Complies with the requirements of CPCI bus usage, can replace ordinary leaf spring 2mm pitch connectors, With reliable contact performance and environmental resistance

Electrical and environmental performance complies with IEC61076-4-101

Uses highly reliable hyperbolic wire spring holes, suitable for harsh environments with strong vibration and shock

Suitable for high-speed data transmission between motherboard and daughterboard

Excellent signal integrity

Transmission rate can reach 3.125Gbps

Can be used in military fields such as aviation, aerospace, and naval ships Mechanical properties • Mechanical life: 5, 000 cycles of insertion and extraction

• Shock: 6ms post-peak sawtooth wave, 980m/s²

• Vibration: Sine wave from 10Hz to 2000Hz, acceleration of 196m/s²;

Random vibration from 10Hz to 2000Hz, power spectral density of 0.4g²/Hz Electrical properties • Voltage withstand: 1000V AC at normal temperature and pressure;

100V AC at low pressure (30KPa)

• Contact resistance: ≤25mΩ

• Insulation resistance: ≥5000MΩ

• Rated current: 1A 文心大模型3.5生成 Environmental Performance • Operating Temperature: -65℃ to +125℃

• Fluid Resistance: Resistant to various fuels, coolants, and solvents

• Damp Heat: As per GJB 1217A, alternating damp heat for 10 days

• Flame Retardancy: Self-extinguishes within 10 seconds

• Salt Spray: 48 hours Utilizes spring-loaded pin holes to enhance contact reliability The K2 series connectors employ highly reliable wire spring sockets, capable of withstanding harsh operating conditions such as high-intensity vibrations and shocks.

Their resistance to vibration and shock is significantly higher than that of ordinary leaf spring structure products.

Additionally, their mechanical life exceeds 5000 cycles, far surpassing the 500 cycles of ordinary leaf spring structure products.
