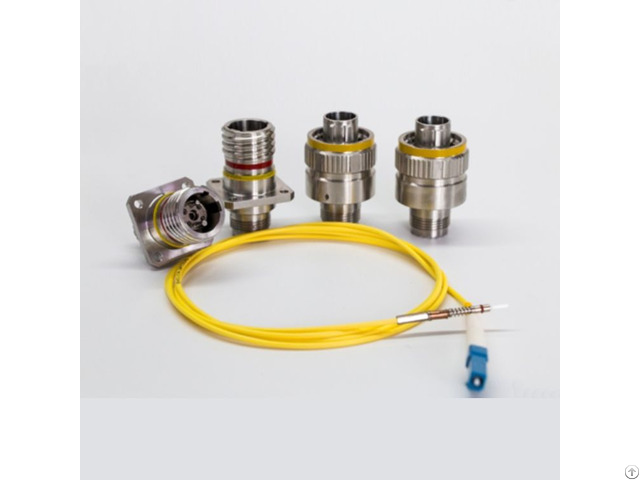

Ngc Mil Dtl 64266 Fiber Optic Connector Aviation - China

Product Introduction Conforming to the MIL-PRF-64266B series standard

Imperial double-headed threaded quick connection with locking mechanism

Three-key circumferential recognition and positioning for blind insertion and error-proof insertion

The outer shell can be made of different materials and coatings to meet different environmental requirements

Detachable standard Φ1.25mm neutral fiber optic contact is adopted

Removable ASR components for easy cleaning and maintenance

The product applies mature and new technologies of connectors that meet the MIL-PRF-28876 and MIL-DTL-38999III series standards, and has better mechanical and environmental resistance performance Optical Performance Insertion Loss: ≤0.5dB Return Loss: ≥30dB (MM, SM/PC) ≥40dB (SM/UPC) ≥60dB (SM/APC) Optical Discontinuity: 50μs, 0.5dB Environmental Performance Temperature Range: -55°C to +165°C High-Temperature Life: 165°C for 1000 hours Salt Spray: Class A: 500 hours Class B: 500 hours Class F: 48 hours 文心大模型3.5生成 Mechanical Performance Housing Material and Plating: A - Aluminum Alloy, Cadmium-Plated Military Green B - Stainless Steel, Passivated F - Aluminum Alloy, Nickel-Plated Mechanical Life: 500 mating cycles Shock Resistance: 300G Vibration Resistance: Sine Vibration: 60G Random Vibration: 1.0G²/Hz
