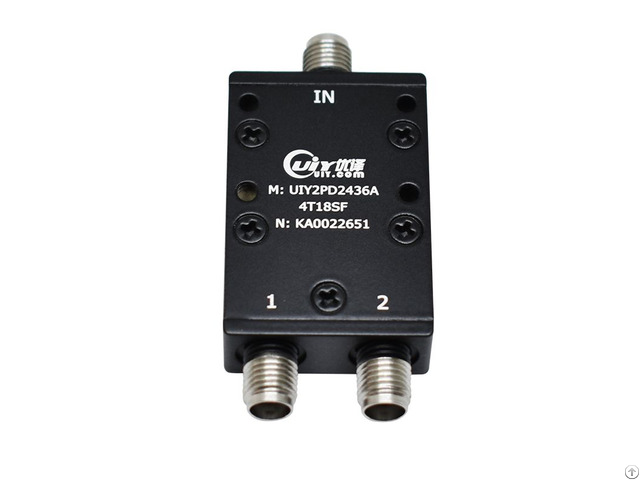

Radar System Ku Band 4 0 To 18 0ghz Rf 2 Way Power Divider - China
price: 290.00 Dollar US$
Model Number: UIY2PD2436A4T18SF
Frequency Range: 4.0~18.0GHz
Insertion Loss: 0.8(Split 3dB)
Isolation: 16dB
VSWR Input: 1.8
VSWR Output: 1.6
Phase Unbalance: ±5˚
Amplitude Unbalance: ±0.4dB
Forward Power: 30W
Reverse Power: 3W
Connector Type: SMA-F
Temperature: -55 ~ +85°C
Dimension: 24*36*10mm UIY's product offerings include RF Isolators, RF Circulators, RF Filters, Power Divider / Splitter, Duplexer/Triplexer, Hybridge Combiner, Coaxial Termination, Coaxial Attenuator, Directional Coupler, Waveguide to Coaxial Adapter.
We offer cost-effective customized solutions in a wide range of RF and Microwave Components and Subsystems.
Company Contact:
- Posted By: UIY Inc.
- Phone: 86-0755-83748888
- Address: New address: No. 8, lane 1, Xintun East Zone, Longgang District, Shenzhen 518172, China, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: August 18, 2022
- Business Description: UIY Inc.
was established in 2003 in Shenzhen, China,with the registered capital of 200 million yuan (about 32 million dollars),as a RF Microwave Componets Manufacturer and Communication Equipment RF Module Supplier.
We specialized in:
RF Isolator / Circulator
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
Welcome partners from all over the world to cooperate with UIY, to feel the entrepreneurship strength in UIY.
Wish to create a beautiful tomorrow with you together!
Contact name: Ms kelly hu
Mob: +8613902992351
