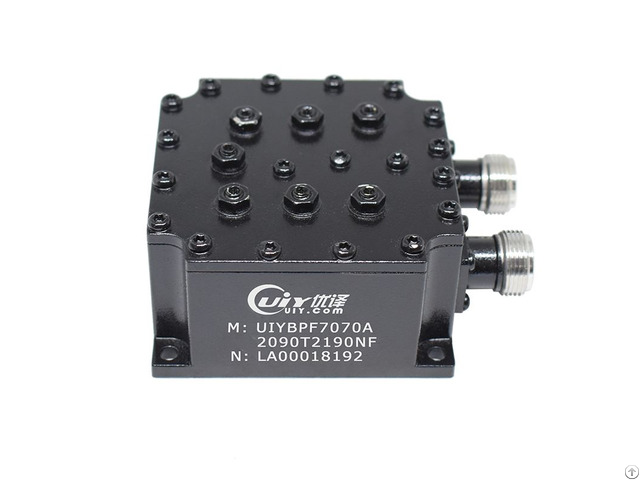

Rf Band Pass Filter 2090 2190mhz 100w - China
price: 250.00 Dollar US$
Model Number: UIYBPF7070A
Pass Band: 2090~2190MHz
Insertion Loss: 0.6dB
Ripple: 0.5 dB
VSWR: 1.3
Rejection: 30dB@DC~1980 MHz 30dB@2300~3000MHz
Power: 100W
Connector Type: SMA-F N-F
Temperature: -40~+85℃
Frequency range 0.32 to 112GHz
Military, space and commercial applications.
Low insertion loss, high isolation, high power handling.
Custom design available upon request
Company Contact:
- Posted By: UIY Inc.
- Phone: 86-0755-83748888
- Address: New address: No. 8, lane 1, Xintun East Zone, Longgang District, Shenzhen 518172, China, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: May 6, 2022
- Business Description: UIY Inc.
was established in 2003 in Shenzhen, China,with the registered capital of 200 million yuan (about 32 million dollars),as a RF Microwave Componets Manufacturer and Communication Equipment RF Module Supplier.
We specialized in:
RF Isolator / Circulator
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
Welcome partners from all over the world to cooperate with UIY, to feel the entrepreneurship strength in UIY.
Wish to create a beautiful tomorrow with you together!
Contact name: Ms kelly hu
Mob: +8613902992351
