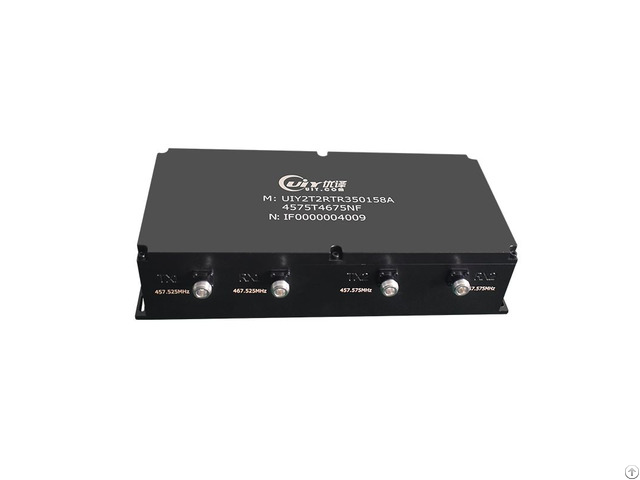

Rf Tx And Rx Multicoupler Signal Transmitter - China
price: 1435.00 Dollar US$
Model Number: UIY2T2RTR350158A4575T4676 NF
Channels 1: TX 457.5250MHz RX 467.5250MHz
Channels 2: TX 457.5750MHz RX 467.5750MHz
Insertion loss: 4.8dB Max.
@TX-ANT&ANT-RX
Isolation: 28.0dB Min.
@TX-TX&RX-RX 75.0dB Min.
@ TX-RX& RX-TX
VSWR: 1.25: 1 Max.
Number of Channels: N Female @2xTX N Female@2xRX N Female @1xANT
Input Power: 50W/CH
Temperature: -30~+75°C
Appearance color: Black
Weight: ~5.5Kg
Dimension: 2U
Military, space and commercial applications.
Low insertion loss, high isolation, high power handling.
Custom design available upon request.
