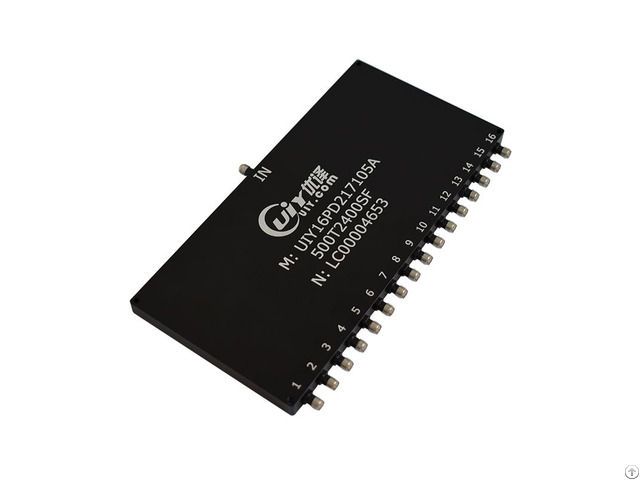

Uhf500 2400mhz Rf Power Divider 16 Out 1 In - China
price: 200.00 Dollar US$
Model Number: UIY16PD217105A500T2400SF
Frequency Range: 500~2400MHz
Insertion Loss: 2.3dB (split 12)
Isolation: 18dB
VSWR: 1.5
Phase Unbalance: ±12°
Amplitude Unbalance: ±0.7dB
Forward Power: 10W
Reverse Power: 3W
Connector Type: SMA-F
Temperature: -55~+85℃
Dimension: 217*105*11mm
Frequency range 70MHz to 40 GHz.
Military, space and commercial applications.
Low insertion loss, high isolation, high power handling.
Custom design available upon request.
Company Contact:
- Posted By: UIY Inc.
- Phone: 86-0755-83748888
- Address: New address: No. 8, lane 1, Xintun East Zone, Longgang District, Shenzhen 518172, China, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: May 6, 2022
- Business Description: UIY Inc.
was established in 2003 in Shenzhen, China,with the registered capital of 200 million yuan (about 32 million dollars),as a RF Microwave Componets Manufacturer and Communication Equipment RF Module Supplier.
We specialized in:
RF Isolator / Circulator
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
Welcome partners from all over the world to cooperate with UIY, to feel the entrepreneurship strength in UIY.
Wish to create a beautiful tomorrow with you together!
Contact name: Ms kelly hu
Mob: +8613902992351
