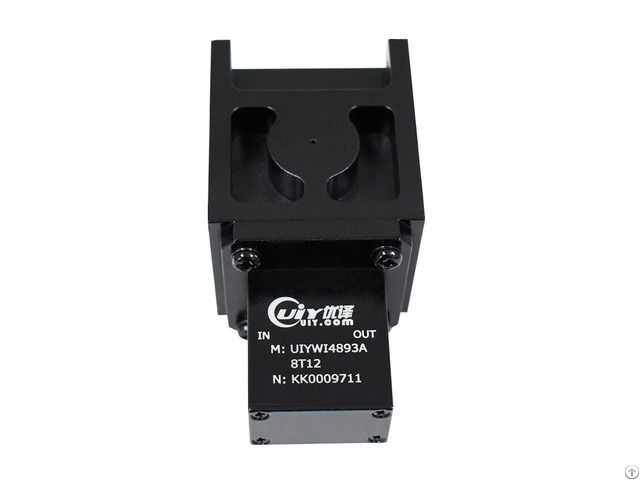

Wr90 Bj100 X Band 8 0 To 12 0ghz Rf Waveguide Isolator - China
price: 150.00 Dollar US$
Model Number: UIYWI4893A8T12
Frequency Range: 8.0~12.0GHz
Bandwidth: Full
Insertion Loss: 0.5dB
Isolation: 18dB
VSWR: 1.3
Forward power: 100W
Reverse Power: 30W
Connector Type: WR90(BJ100)
Temperature: -40~+85°C
Dimension: 48*93*42mm Military, space and commercial applications.
Electronic Musical Instrument Public Address System Radio Set Biomedical Instrumentation Optical Communication Technology Wireless Infrastructure Microwave Subsystems 2G 3G 4G 5G GSM CDMA LTE NR
Company Contact:
- Posted By: UIY Inc.
- Phone: 86-0755-83748888
- Address: New address: No. 8, lane 1, Xintun East Zone, Longgang District, Shenzhen 518172, China, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: September 19, 2022
- Business Description: UIY Inc.
was established in 2003 in Shenzhen, China,with the registered capital of 200 million yuan (about 32 million dollars),as a RF Microwave Componets Manufacturer and Communication Equipment RF Module Supplier.
We specialized in:
RF Isolator / Circulator
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
Welcome partners from all over the world to cooperate with UIY, to feel the entrepreneurship strength in UIY.
Wish to create a beautiful tomorrow with you together!
Contact name: Ms kelly hu
Mob: +8613902992351
