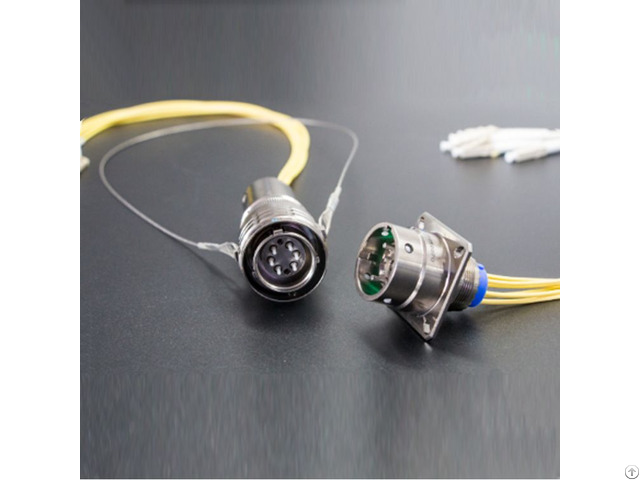

Yfp Series Detachable Fiber Optic Connector - China

Performance conforms to ARINC801 standard Push-pull type plug-in separation

Three-key positioning with blind mating and error-proof insertion capabilities

Application areas: aerospace systems, ships, aviation, etc.

Mechanical Properties • Mechanical Life: 500 cycles

• Mechanical Separation Force: ≤50N

• Shock: 980m/s² with a duration of 6ms

• Vibration: 10Hz to 2000Hz, with a Power Spectral Density (PSD) of 0.4G²/Hz Environmental Performance • Temperature Range: -55℃ to +125℃ (depending on fiber optic cable temperature)

• Salt Spray: 96h for nickel-plated aluminum alloy; 500h for passivated stainless steel Optical Performance • Insertion Loss: ≤0.6dB
