Rail Cant Measuring Device - China
price: contact company for price
The main part of the wheel tread is an inward inclination of 1: 40 .

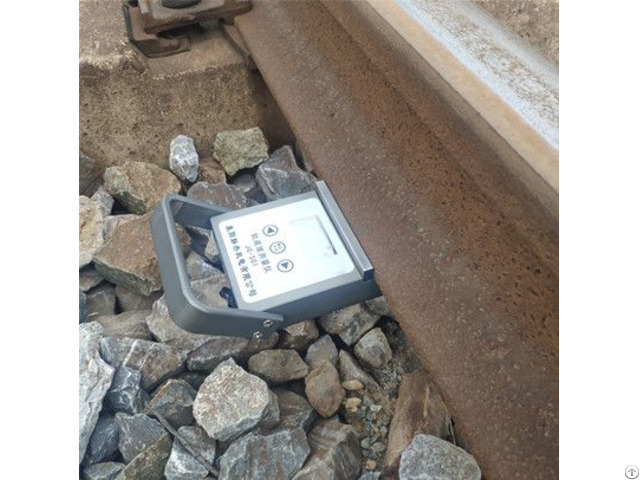

In order to make the top of the rail track under the wheel load with cone tread stressed uniformly, decrease load offset, reduce rail web stress, avoid slit between rail head and rail web, the railway track shall not be laid upright for straight line, it shall be inward inclined, this inward inclination of rail called Rail Cant, it is a high precision, portable, numeric rail geometrical testing tool.
BENEFITS 1 - Stable performance, protect electromagnetic interference .
2 - One piece structure design, light and handy ; 3 - magnetic self-absorption function ; 4 - Data display is clear and intuitive 5 - The function of temperature of environmental temperature factors on the measurement data 6 - Power saving function : The system will shutdown automatically if there is no operation in 5 minutes .
SPECIFICATION Model JG-SO1
Power Supply Mode Built-in lithium battery charging
Operating Temperature -30°~ +60°
Measuring Range ±1:10 ~ ±1:200
Operating Current 40mA
Size 225*90*60mm
Company Contact:
- Phone: 15071526332
- Address: Huagong Science Park Modern Service Industry Base, University Park Road, East Lake High-Tech Develop, wuhan , hubei , China
- Email:
- Website: https://www.linkrailtech.com/
Published date: April 10, 2024
- Business Description: Wuhan Linkage Track Equipment Co., Ltd is a high-tech enterprisespecializing in railway inspection equipment,which integrates R&D, productionand sales.
We are committed to becoming a world-renowned railway equipment supplier.
We adhere to the enterprise vision “customer first, outstanding brand, excellent team,innovation and development",listen to the requirements of global customer, design thecompetitive products.
We always believe that, only with the high-quality products and service, we keep goingfurther.
No matter what you need for railway equipment, Lianjie will provide the best solution.
