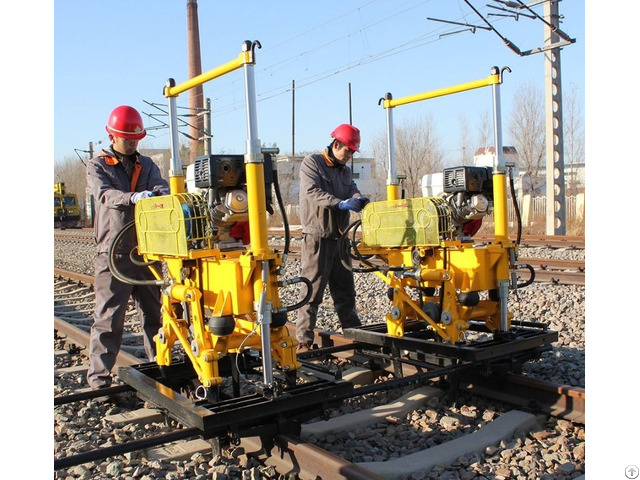

Rail Tamping Machine - China

price: contact company for price

The machine is suitable for tamping operation on various rail and concrete sleeper track after the overhaul and medium ballast cleaning operation, and also suitable for tamping operation on the ballast bed of new track.

This machine has the features of high quality performance, reasonable structure, reliable and high working efficiency, which will satisfy the requirement of ballast tamping operation.

Specification Model

YD-22

Type

Rail Tamping Machine

Material

Stainless Steel

Dimensions (L x W x H) (mm)

1300 * 750 * 1600mm

Engine

Diesel Engine SF190

Power

7kW

Vibrating force

22kN

Vibrating frequency

66.7Hz

Hydraulic system working pressure

5~6MPa

Max insert force

16kN

Max clamping force

6.5kN * 2

Production efficiency

≥ 270 pieces / (group • hour)

Inserting depth

110mm ± 10mm (underneath the sleeper)

Weight

439kg


Company Contact:


  • Phone: 15071526332

  • Address: Huagong Science Park Modern Service Industry Base, University Park Road, East Lake High-Tech Develop, wuhan , hubei , China

  • Email: Email


Published date: April 10, 2024

  • Business Description: Wuhan Linkage Track Equipment Co., Ltd is a high-tech enterprisespecializing in railway inspection equipment,which integrates R&D, productionand sales.

    We are committed to becoming a world-renowned railway equipment supplier.

    We adhere to the enterprise vision “customer first, outstanding brand, excellent team,innovation and development",listen to the requirements of global customer, design thecompetitive products.

    We always believe that, only with the high-quality products and service, we keep goingfurther.

    No matter what you need for railway equipment, Lianjie will provide the best solution.
