Yls 900i Hydraulic Rail Tensor - China
price: 3600.00 Dollar US$

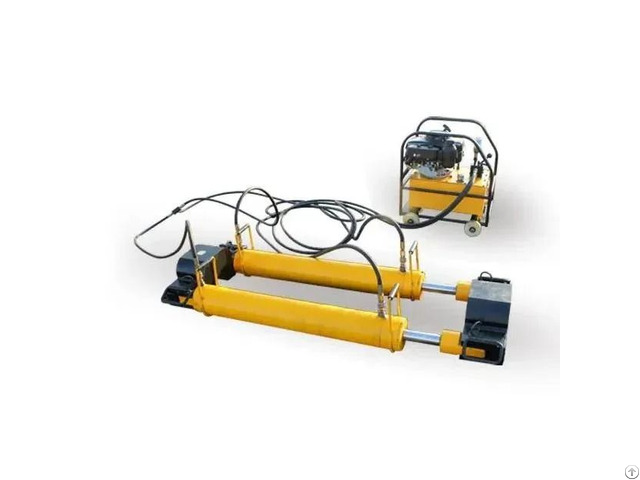

YLS-900I Hydraulic Rail Tensor
It's suitable for 75kg/m and 60kg/m type rail stress relief and seamless long rail relaying.
While operating in the field at a certain temperature range being lower than the rail locking temperature, by employing this machine, the length of a rail with zero-stress can be forced to stretch to a length at locking temperature, then re-lock the rail.
Model
YLS-900I
Material
Stainless Steel
Dimensions (L x W x H) (mm)
1300*690*240mm
Max.
rated working pressure
57Mpa
Max.
rail pulling force
2*450kN
Max.
stroke of working cylinder
≥500mm
Two pull rod center distance
535mm
Lock mode
wedges clamp on both sides of rail head
Pump model
Honda GXV160
Power
3.05kW
Rate of flow
≥3L/min
Machine weight
283kg
Internal combustion pump station weight
75kg (not including pipeline)
Company Contact:
- Posted By: Wuhan linkage track equipment co.,ltd
- Phone: 13247139241
- Address: Room 1007, Block B, Building 1, Huagong Science Park Modern Service Industry Base, University Park R, Wuhan City, Hubei Province, China, China
- Email:
- Website: https://www.linkrailtech.com/
Published date: September 29, 2024
- Business Description: General projects: Sales of special equipment, key systems and components for rail transit; Sales of railway special measuring or testing instruments; Sales of electronic measuring instruments; Railway transport equipment sales; Machinery and equipment sales; Import and export of goods; Sales of industrial control computers and systems; Information technology consulting services; Machinery and equipment leasing; Technology import and export; Metrological technical services; Sales of integrated circuit chips and products (except for items subject to approval according to law, independently carry out business activities according to law with business licenses)
