Ev Charging Pile Aluminum Electrolytic Capacitors - China

1 - Capacitor special for EV charging points.

2 - Enduring high temperature, high voltage, high ripple current and high frequency

3 - ROHS compliant.

Through more than six years' research and development, We, Shanghai Yongming to be the first company in China to launch aluminum electrolytic capacitor special for Electric Vehicle charging pile(EV charging points).

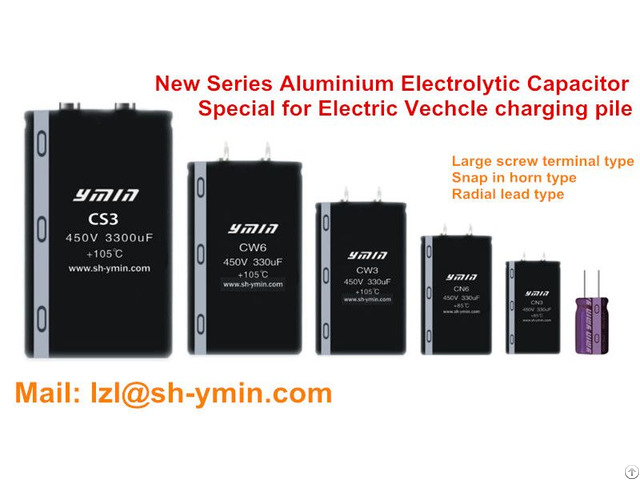

From small power to high power and different requirements, it is mainly divided into six series:

LKZ, CN3, CN6, CW3, CW6, CS3.

Characteristics

LKZ: 10000Hours, -55℃ to 105℃, 10V to 600V, 2.2uf to 6800uf.

Radial lead type.

CN3: 3000Hours, -40℃ to 85℃, 350V to 500V, 47uf to 1000uf.

Snap in type.

CN6: 6000Hours, -40℃ to 85℃, 350V to 500V, 68uf to 1000uf.

Snap in type.

CW3: 3000Hours, -40℃ to 105℃, 300V to 500V, 47uf to 1000uf.

Snap in type.

CW6: 6000Hours, -40℃ to 105℃, 350V to 500V, 82uf to 1000uf.

Snap in type.

CS3: 3000Hours, -40℃ to 105℃, 200V to 500V, 1000uf to 33000uf.

Screw Terminal Type.

Different series for different Charging points:

1 - For Miniature small power charging points, choose LKZ series.

2 - For normal temperature environment, , LIGHT load (general use within 70% load), choose CN3 series

3 - For normal temperature environment, HEAVY load (generally use in more than 70% load), choose CN6 series.

4 - For Harsh conditions (such as the summer outdoor, plateau large temperature difference, etc.

),

LIGHT load (general use within 70% load), choose CW3 series

5 - For Harsh conditions (such as the summer outdoor, plateau large temperature difference, etc.

),

HEAVY load (generally use in more than 70% load or long time continuous use) , choose CW6 series

6 - For low ESR, large ripple current charging pile, choose CS3 series.

Our advantages compare with competitors:

Longer life,

Higher reliability.

Low leakage current, low loss.

Less capacitance change after the life test,

Better characteristics in bad condition extremely low temperature.

Different size are available.

Quality is almost same as JAPANESE RUBYCON.
