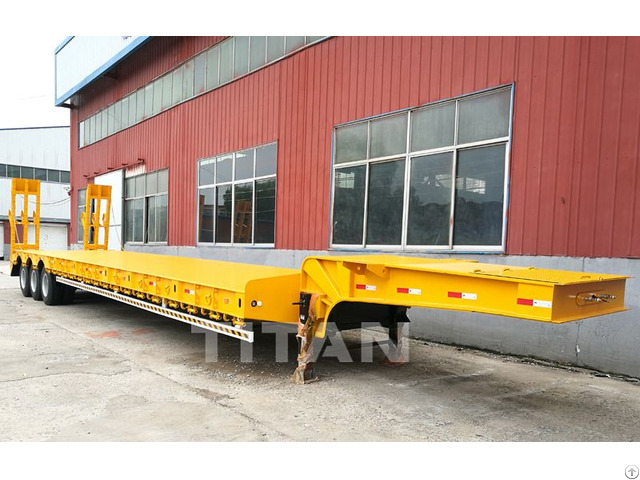

Applications Of Lowbed Trailer - China

Applications of lowbed trailer

Low bed trailers can transport heavy cargo in different industries.

Here are the most common uses of the heavy-duty trailers.

Heavy vehicles: Vehicle manufacturers use low bed trailers to transport heavy vehicles from one showroom to another.

The transporters are used to move the vehicles from the port to showrooms and sometimes to clients.

Construction: Low bed trailers are used in the construction industry as well.

The heavy duty vehicles are commonly used in the construction of roads and bridges.

Some construction equipment and blocks cannot be transported with normal semi-trailers.

Low bed trailers are used to transport concrete blocks to the construction sites.

Mining machinery: Mining requires heavy machinery for drilling and transporting materials including crude oil and minerals.

The machinery is assembled offsite and then transported to the mining sites using low bed trailers.

The heavy haulers are preferred because of the structure of mining machinery.

Mining equipment is perhaps the heaviest cargo that machinery manufacturers transport on the road.

Windmill components: The components of windmills are usually assembled in a factory and then transported to their sites.

Similar to other heavy cargo, the components are wide and heavy.

The components cannot fit on a closed trailer because of their design and structure.

Lowboy trailers are an efficient way of transport these components to their site.

How to choose parts of lowbed flat trailer?

1 - Main beam

TITAN lowbed trailer main beam adopts HG high strength steel, with high loading capacity, and the low loader trailer adopts submerged arc welding technology, that ensures the smooth, sturdy welding seams and avoids welding-opening problems.

The main beam height is 550-580mm.

The front/down plate width is 220mm, and the thickness is 22mm.

That durable and stronger construction ensure the loading capacity, and also improve its capacity to twisting forces, shock, bump, and meet load requirements on bad road condition.

2 - Ramp

The ramp is used to move the cargo on a low bed trailer.

The length of the ramp depends on the weight of the cargo.

A longer ramp is required to move heavy cargo on the trailer.

Using a longer ramp reduces the slope, which makes it easier to move heavy cargo.

You need to consider the maximum weight of your cargo when choosing a ramp.

There are two types of ramps, namely, a mechanical ramp and a hydraulic ramp.

TITAN loading ramps are made by high strength steel, with high loading capacity, which will not happen to the deformation when carrying heavy equipment.

3 - Suspensions

You can choose from different types of suspensions for your low platform transport trailer.

like air suspension, spring suspension, bogie suspension.

TITAN spring suspension width is 120mm, the thickness is 10mm, and rotation pin of suspension we use 70mm.

Ensure it has high loading capacity and increases its capacity to twisting forces, shock, bump.

4 - Braking System

Inspecting the braking system is very important because it involves your life as well.

Driving a loaded trailer with poor brakes is very risky.

The most important aspect to inspect in the braking system is the gas pressure.

TITAN low bed trailer adopts famous brand parts, like WABCO braking valve, German famous brand, Improve the system's reaction sensitivity and stability, Safer.

My whatsapp is +86 18615201302 - if you like this product or need other semi trailers, please contact me, i will provide the details for you.
