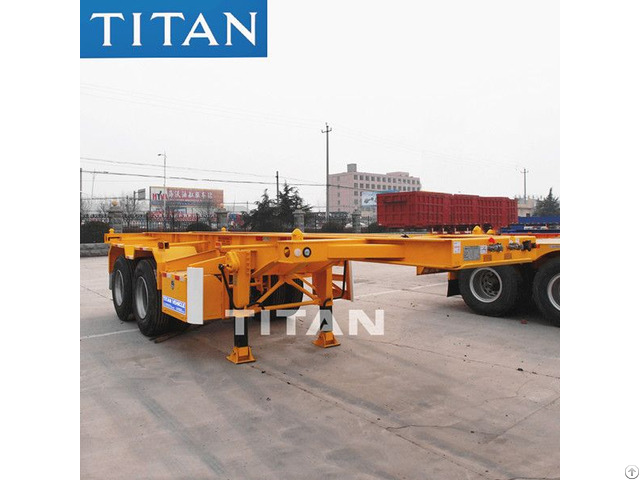

Container Chassia 2 Axle 20ft Skeleton Trailer For Sale In Nigeria - China
price: 6500.00 Dollar US$
The skeletal semi trailer frame is welded by longitudinal beams, cross beams, front and rear beams.
The longitudinal beams are made of high-quality steel plate 16Mn submerged arc welding into an I-shape (the main dimensions are 450, 500), and the cross beams are stamped into grooves with high-quality steel plates.
The front and rear beams are welded rectangular sections.
An integral long beam is installed at the middle container locking device to improve the carrying capacity of the container locking device.
The frame of the wooden container transport semi-trailer is all shot blasted, and the entire frame is assembled and welded on a dedicated positioning table, with reasonable structure, high strength and beautiful appearance.
The difference between the flat type and the skeleton type is that the flat type adds a frame and a patterned floor.
The four container shrinking devices at the front and rear ends are of a fixed structure, and the middle container shrinking device is a concealable structure.
A container compaction device is installed on the frame, which can load two standard containers of 40 feet and 20 feet.
When loading containers, the intermediate container locking device can be lowered below the level of the cargo platform as required.
Its function is to support the ground and bear the front load of the semi-trailer when the traction device is disengaged from the trailer.
There are two types of supporting devices, single-acting type and linkage type, which are mainly composed of a supporting plate, a screw drive mechanism, a reduction box and a joystick.
There are three types of suspension devices: single-axle suspension and double-axle suspension and three-axle suspension.
The container chassis semi-trailer is equipped with two spare tire frames, which are installed on the left and right sides of the trailer frame respectively, and are equipped with spare tire lifters.
