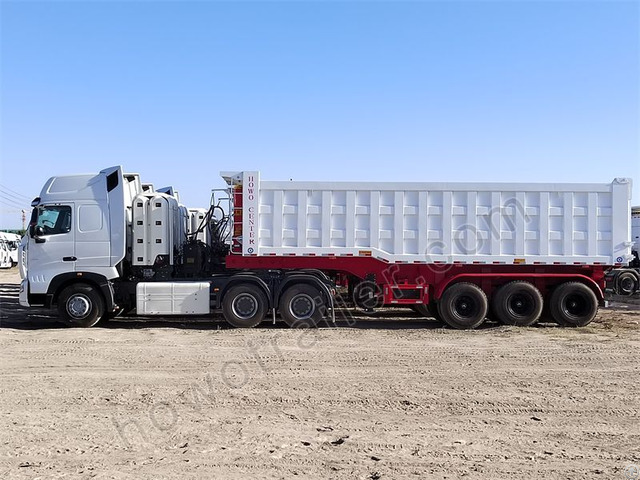

Tipper Semitrailer 3 Axles - China

price: contact company for price

Tipper Semi-trailer (also called Dumper trailer) is a semi-trailer which could do self-dumping with the hydraulic systems, normally there are Rear Tipper and Side Tipper types.

The tipper semi-trailer is designed to transport solid aggregate, ore, sand, stone, coal, earthmoving, wheat and similar bulk cargoes, minerals, or others.

Tipper trailers will help you to carry and offload bulk cargo in a more efficient manner with much more loading than a normal tipper, so tipper trailers are widely used in mines, construction sites, agriculture sector, among others.

HOWO Tipper semi-trailer has plenty options as to loading volume, high strength cargo bucket steel materials, axle brand and loading capacity, hydraulic systems, suspension systems, which can meet all your specific requirements that challenge the most demanding working conditions.

HOWO 3 Axle Semi Tipper/Rear Dump Trailer/Tipping Trailer/Dumper Trailer Technical Specifications

Overall dimension(mm) 10, 700x2, 550x3, 800 or customized

Rated Payload(kg)

50, 000kg or customized

Box Dimensions (mm) 9, 950x2, 350x1, 700 or customized

Main beam(mm)

500mm height, Submerged arc welding, Q345B strong metal

Flange and web(mm)

18/10+6/20, Q345B strong metal

Floor Thickness(mm)

8mm, Manganese plate

Side wall thickness(mm)

6mm, Manganese plate

Kingpin

JOST Brand, 2 or 3.5’’ bolt-in type

Hydraulic system

Front lifting, Original HYVA or optional Brand hydraulic Lifting

Brake system Dual lines air brake system, WABCO RE 4 relay valve, T30/30+T30 spring brake chamber, 45L air tanks

Electrical system

24V, LED lights

Suspension

First axle with liftable airbag suspension, rear 2 axle with leaf spring suspension/All three axles with leaf spring suspension or other customized suspension

Axle

The first axle with the air lifting axle, the rear two axles use mechanical axles, or all three axles use mechanical axles.

BPW, FUWA, 16Ton, or other optional Brand Axles

Tire

12 tires with 12.00R20 tires, 12+1 piece spare tire

Painting Complete chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 layers of final paint.

Spare tire carrier

1 unit per chassis


Company Contact:


  • Phone: 17853157281

  • Address: No.122, HuaYuan Road, Zhengzhou City,China, Zhengzhou , Henan , China

  • Email: Email


Published date: March 22, 2024

  • Business Description: HOWO TRUCK INTERNATIONAL CO., LTMITED is a key e-commerce exporting platform with direct factory price of SINOTRUK HOWO 8*4, 6*4, 6*6 heavy duty tippers, 4*2 light duty tippers, SINOTRUK HOWO 6*4, 4*2 tractor trucks/truck heads, HOWO 8*4, 6*4, 4*2 cargo truck/lorry trucks, HOWO 7 series, HOWO NX series, HOWO TX series and others are all available with us.

    We produce and sell heavy duty semi tippers/tipping trailers, flatbed semitrailers, low bed/lowboy semitrailers, all kinds of fence/drop side/stake/sidewall semi-trailers, all kinds of semi fuel tankers made of carbon steel, stainless steel or aluminum alloy with various loading capacity and optional number of compartments, all kinds of drawbar semi-trailers, our semi-trailers is original from state of the art SINOTRUK HOWO factory by using genuine hydraulic systems such as HYVA, top quality axles such as BPW or FUWA, well tested leaf spring and airbag suspensions, high-strength metals such as HARDOX, T700, Q345B.

    We also produce HOWO boom truck/truck mounted crane, fuel tank truck, water tank truck, mining truck, and concrete mixer truck based on 8*4, 6*4 or 4*2 HOWO chassis, meanwhile, XCMG, LOVEL, SHANTUI and SDLG construction machinery such as wheel loaders, excavators with different working capacity is also available with us.
