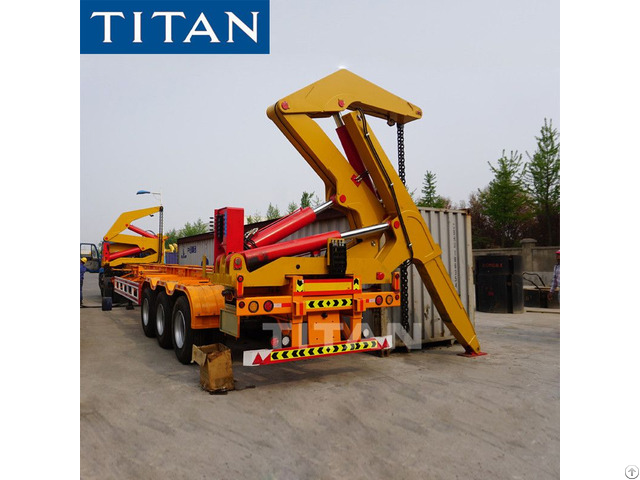

What Is Sidelifter Trailer - China

With the prosperity of the automobile transportation industry, high-quality and high-efficiency container transportation has also developed rapidly, and container transportation is gradually becoming specialized.

At present, the operation of lifting containers onto vehicles in special container ports, cargo yards and other storage locations is generally completed by container loading and unloading bridges, straddle carriers and container forklifts, while container transport vehicles only perform transportation functions.

Application of sidelifter trailer

1 - Container loading The self-loading and unloading capacity of a container eliminates the need for forklifts and other heavy equipment available at both ends of the container route.

2 - Industrial Transport Services producing companies use these sidelifter trailer for their merchandise.

3 - Railway transfer Because it does not require a lot of expensive infrastructures, just enough space to load or unload the wagons.

4 - Intermodal transportation characterized by a frequent transshipment of cargo between roads and railways and because it requires an uninterrupted transport chain.

Hydraulic system: 1 - Hydraulic pressure gauge When the hydraulic components and pipelines are operated under normal working pressure or test pressure, there will be no system failure or excessive temperature.

The hydraulic system is equipped with a high-pressure filter at the pump outlet and an oil return filter in the oil return line.

Used to ensure the cleanliness of hydraulic oil.

2 - Pump The double pump structure is adopted.

The theoretical displacement of the single pump is 60L / min, and the combined flow rate can reach 120 L/min.

The double pump structure can meet the rapid extension and retraction of the lifting components during no-load and stable and safe operation at full load.

3 - Fuel tank The container self loader trailer fuel tank should adopt a single-box double-cavity structure.

The cavity and the cavity are completely isolated.

One cavity is used to store diesel fuel required for the diesel engine to work, and the other cavity is used to store hydraulic oil.

The oil tank should be installed with a level gauge, oil return filter, breathing valve and bottom oil port.

4 - Overflow valve The hydraulic system can realize high-speed (low pressure) and low-speed (high pressure) operation.

At high speed, the system pressure passes through the high and low speed relief valve to ensure the safety of high-speed operation.

The main control relief valve pressure is set to 4200 Psi during low speed operation, thus ensuring the safety of the system during low speed operation.

5 - Hose, rigid pipe and pipe joint The minimum burst pressure of the hose is at least 4 times the maximum working pressure, and the minimum burst pressure of the hard pipe and joint is at least 2.5 times the working pressure.
