Nsi Flanged Class 600 Class2500 Swing Check Valve - China

price: check with company for price

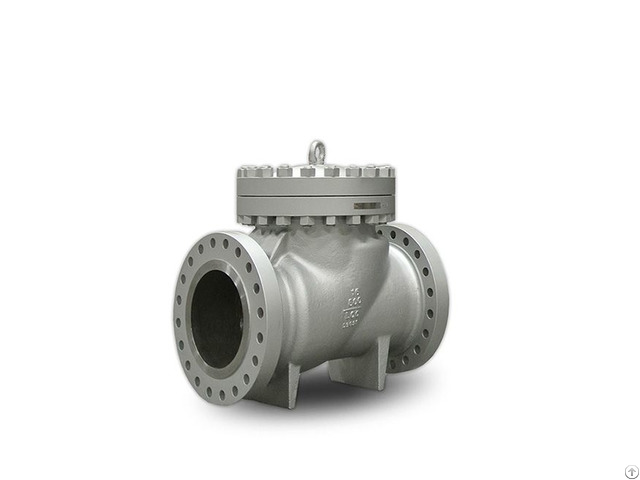

Nsi Flanged Class 600 Class2500 Swing Check Valve

Products Photos Catalog Nsi Flanged Class 600 Photos Catalog

Technical Specification

Design and Manufacture: BS1868 or API 6D Inspection and Test: API 598 or API 6D

End flange dimension: ASME B16.5, ASME B16.47 A, MSS SP-44; SME B16.47 B, API 605

BW end dimension: ASME B16.25

Face to face and end to end: ASME B16.10

Pressure-temperature ratings: ASME B16.34

Wall thickness dimension: API 600 and BS 1868

Main Parts and Materials

WCB/Trim 1 WCB/Trim 5 WCB/Trim 8 CF8/304 CF8M/316 Body WCB WCB WCB CF8 CF8M Seat ring A105+13Cr A105+STL A105+STL CF8 CF8M Disc WCB+13Cr WCB + STL WCB + 13Cr CF8 CF8M Arm WCB WCB WCB CF8 CF8M Nut A194 2H A194 2H A194 2H A194 8 A194 8M Arm pin F6a F6a F6a F304 F316 Yoke WCB WCB WCB CF8 CF8M Bonnet nut A1942H A194 2H A194 2H A194 8 A1948M Bonnet bolt A193 B7 A193 B7 A193 B7 A193 B8 A193B8M Bolt A193 B7 A193 B7 A193 B7 A193 B8 A193B8M Gasket: 304 + Graphite Bonnet WCB WCB WCB CF8 CF8M Eye bolt A181 A181 A181 A181 A181

Class600 NPS DN L(RF/RTJ/BW) d H Weight(kg) 2 50 292/295/292 51 170 28

21/2 65 330/333/330 64 178 40

3 80 356/359/356 76 246 68

4 100 432/435/432 102 290 117

5 125 508/511/508 127 320 155

6 150 559/562/559 152 360 192

8 200 660/664/660 203 430 340

10 250 787/791/787 254 502 515

12 300 838/841/838 305 554 750

14 350 889/892/889 337 595 890

16 400 991/994/991 387 680 1303

18 450 1092/1095 /1092 438 778 1800

20 500 1194/1200 /1194 489 970 2150

24 600 1397/1407 /1397 591 1100 3200

Class900

NPS DN L(RF/RTJ/BW) d H Weight(kg) 2 50 368/371/368 51 200 48

21/2 65 419/422/419 64 220 75

3 80 381/384/381 76 280 95

4 100 457/460/457 102 320 135

5 125 559/562/559 127 360 200

6 150 610/613/610 152 400 264

8 200 737/740/737 203 480 424

10 250 838/841/838 254 560 730

12 300 965/968/965 305 632 1070

14 350 1029/1038/1029 322 680 1180

16 400 1130/1140 /1130 373 780 1790

18 450 1219/1232/1219 423 880 250

20 500 1321/1334/1321 471 1050 3080

24 600 1549/1568/1549 522 1200 4600

Class1500

NPS DN L(RF/RTJ/BW) d H Weight(kg) 2 50 368/371/368 51 210 48

21/2 65 419/422/419 64 240 75

3 80 470/473/470 76 303 120

4 100 546/549/546 102 340 180

5 125 673/676/673 127 380 294

6 150 705/711/705 144 430 385

8 200 832/841/832 192 500 634

10 250 991/1000/991 239 590 1140

12 300 1130/1146 /1130 287 660 1650

14 350 1257/1276 /1257 315 710 2000

16 400 1384/1407 /1384 360 820 2700

Class2500

NPS DN L(RF/RTJ/BW) d H Weight(kg) 2 50 451/454/451 42 230 68

21/2 65 508/514/508 52 260 100

3 80 578/584/578 62 330 165

4 100 673/683/673 87 370 260

5 125 794/807/794 96 410 440

6 150 914/927/914 131 460 580

8 200 1022/1038 /1022 179 530 970

10 250 1270/1292/1270 223 620 1700

12 300 1422/1445/1422 265 690 2600


Company Contact:


  • Phone: +8613506511164

  • Address: Rm.3-8110,LOFT8, NO.8 Liming industry zone,Binjiang sub-district, wenzhou , zhejiang , China

  • Email: Email


Published date: July 24, 2019

  • Business Description: Wenzhou Xinsy Technology Co., Ltd. is as a lead supplier and exporter of stainless steel valve from Wenzhou China.

    We pursuit of Safety First, High quality with good price, technology innovation and service to the heart.

    Castings direct from own foundry and products processed by digital control machine.

    We offer wild range of the valve with API, ANSI, JIS, DIN, GB, BS, KS standard.

    The material used is as WCB, WC6, WC9, LCB,CF8, CF3, CF8M, CF3M, CN7M, Monel and Hast.

    etc.

    The Pressure is from CL150 to CL2500, working temperature can be -20 to 400 centigrade, wildly used in oil, gas, chemical, petrochemical pulp, paper, water, waste water, marine.

    OEM & ODM are welcome.
