High Flow Industrial Water Filter - China

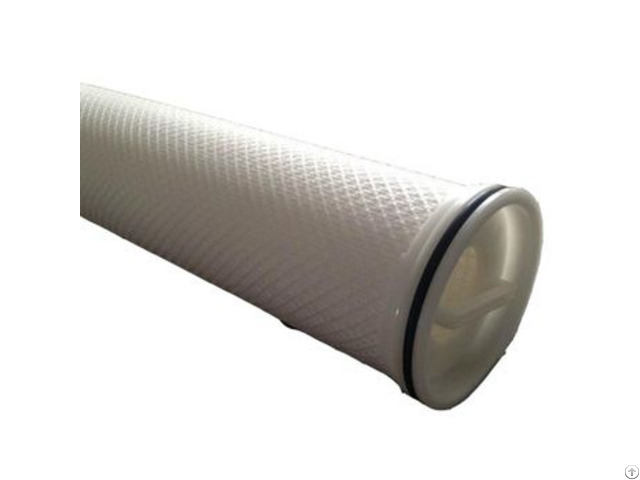

Large flow filters have a big diameter of 6 inches/152mm, but no center support frame.

Only one end of the filter is open and its flow manner of filtering fluid is from inside to outside.

The big diameter of filter elements increases effective filtering areas, and greatly reduces the amounts of filter element and the size of its body case.

Due to its large flow and long life, Pall large flow filter can lower investment and human cost in many applications.

[ High filtration area, large flux] The filter element has a large effective filtration area, low pressure drop and large flow.

[ Large dirt holding capacity and long life] The deep fine membrane material is used to scientifically design the multi-layer gradient pore filter structure, which makes the filter element have the characteristics of high dirt concentration, thereby prolonging the service life of the filter element and saving the user cost.

[A variety of specifications can be selected] A wide range of filtration accuracy from 0.5μm to 100μm is available to meet different filtration levels.

The length specifications can be selected from 20", 40", and 60".

Product Specifications: Product Size [Outer diameter]: 152mm [length]: 20, 40, 60 Structural materials [ Filter media ]: PP / glass fiber [Shell/Center Rod/End Cover]: PP [ Sealing material ]: silicone rubber, ethylene propylene rubber, fluoro rubber, Teflon fluoro rubber Technical performance [Maximum operating temperature]: 80 C [Maximum working pressure difference]: 3 bar@ 21C export01(AT)lefilter.

com
