Astm A351 Lf2 Trunnion Ball Valve - China

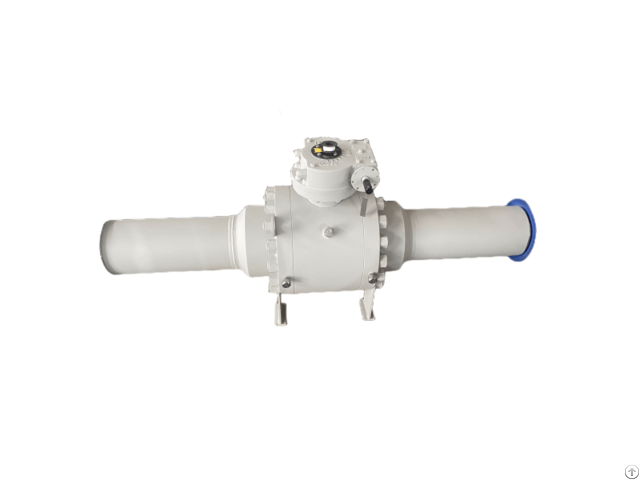

Discover our top-quality Extended Bonnet Pipeline Trunnion Mounted Ball Valve designed in accordance with API 6D standards.

This 8-inch valve, rated at 600 LB, features BW+extended Nipples for seamless installation.

Crafted with an ASTM A351 LF2 Body and LF2+ENP Trim, this valve ensures durability and reliability.

Operated effortlessly with a gear mechanism, our valve is perfect for various industrial applications.

Valve Description:

1811037 Trunnion Mounted Ball Valve 8BS6BLF2

Design Standard: API 6D

Structure: Three pieces forged body, Side Entry, Welded Bonnet, Soft Seat

Nominal size: 8 Inch

Nominal class: 600 LB

Bore Type: Full Bore

End Connection: BW+extended Nipples

Operation: Gear Box

Body Material: ASTM A351 LF2

Trim Material: LF2+ENP, DEVLON Seat

Face to face: ASME B16.10

Test and inspection: API 598, API 6D

Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection Product Range:

Body material: Carbon Steel, Stainless Steel, Alloy Steel

Normal diameter: 2 - 48 Inch (DN15 - DN1200)

Pressure range: Class 150 - 2500 LB

End connection: RF, RTJ, BW, HUB

Working temperature: -29℃ - +150℃

Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
