Cwf Horizontal Crushing Sewage Centrifugal Pump - China

CWF Series marine horizontal crushing centrifugal sewage pump is a centrifugal pump with

an open impeller, used in the sewage treatment of the temperature below 85 degrees Celsius.

The lower diameter of the larger solid particles after being crushed by the circulation is not

more than 5mm and is also suitable for low-temperature solidification and pulverization of

marine heavy oil.

There is a blade in the impeller and the pump inlet to crush contaminants in sewage, the back

surface of the impeller with a short blade, the axial force generated by the balance of the

pump.

The seal of CWF Series marine crushing sewage pump is with double skeleton oil seal, pressure oil filling cup on the pump body can be regularly added to the lubricating oil.

B type

pump is with mechanical seal.

CWF Marine crushing sewage pump between the pump body is connected with 1: 5 over 4

studs with taper strong to the inspection of the pump can easily be removed when the pump

discharges, while the body is not exposed to dirt, the connection with the 0-shape rubber

sealing ring.

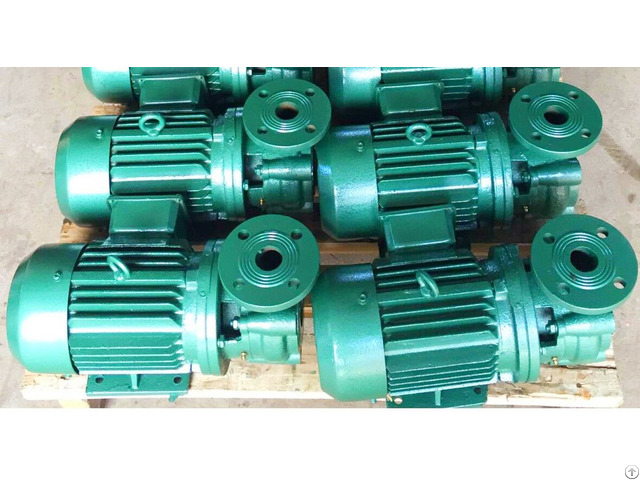

CWF Marine crushing sewage pump body is directly connected with motor, the direction of

the pump from the direction of the suction pump is clockwise.

CWF Marine crushing sewage pump is widely used in light industry, paper making, textile, food, chemicals, power industry, mining, boats, urban sewage drainage and aquatic culture.
