Hdl Low Abrasive Slurry Pumps - China

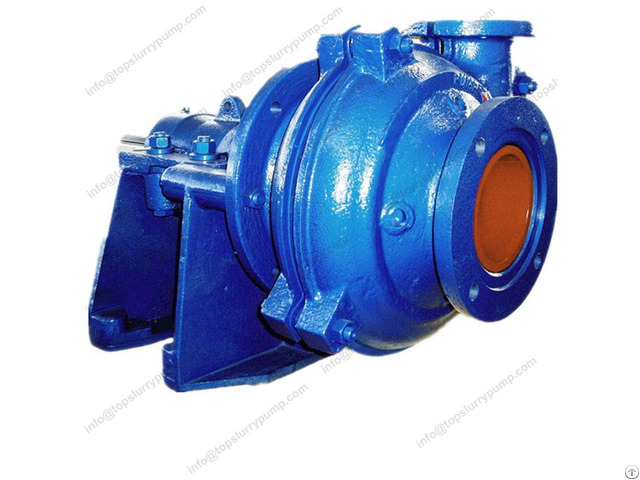

HDL Light duty series slurry pumps is suitable to transport low-abrasion and low concentration slurry in the metallurgical, mining industry and building material industry.

This slurry pumping equipment offers many advantages specially for using in watery or other liquid-filled environments.

With a more laconic structure, this pump requires much smaller space.

Its shaft seal adopts both packing seal and centrifugal seal.

In most conditions, centrifugal seal can work well and there is no necessity for seal water.

If packing seal is adopted, the device should be attached with low or full-flow seal flushing device.

Meanwhile, the Metal Light Duty Slurry Pump casing of this slurry handling equipments is padded with replaceable metal liners which are highly resistant for abrasion.

The impeller is made of anti-abrasion metals or abrasive rubber.

That is why it enjoys a much longer service lifespan.

The frame plates of HDL Series Hedun Centrifugal slurry pump have changeable, wear-resistant metal liners or rubber liners upon request and the impellers are made of wear-resistant metal or rubber.

And the discharge branch can be oriented to any of the eight different positions for installation and application upon request.

The shaft seals could adopt the Packing seal, Expeller Seal or Mechanical seal.

Main application of this kind of Centrifugal slurry pump

They are suitable for delivering low abrasive, low-density slurries They can be found in mining (coal, iron.

Cooper and gold mining, etc.

), chemical processing plants, fertilizer plants, waste treatment facilities, food processing, paper and pulp making, steel and other metal processing, mining, and in power generation plants and so on.

More information you can visit our website

HDL(R) Series Slurry Pump Performance Chart

Pump Model Allowable Max.

Power(kw) Clear Water Performance capacity Q Head H(m) speed n(r/min) Max.

eff.

η% NPSH (m) Impeller Dia (mm) m3/h l/s HDL-20A 7.5 1.8-9 0.5-2.5 7-35.5 1400-3000 40 2.5-3 152

HDL-50B 15 11.5-65 3.2-18 8.5-46 1400-2800 62 2.5-5.5 190

HDLR-50B 15 9-61 2.5-17 3-32.4 1200-2600 48 2.75-4.5 190

HDL-75C 30 21.6-137 6-38 7-46.4 900-2400 57 3-6 229

HDLR-75C 30 28.8-155 8-43 9-43 1100-2300 60 3-5 229

HDL-100D 60 46.8-324 13-90 7-48.3 800-1800 64 2.5-6 305

HDLR-100D 60 54-288 15-80 12-38 800-1600 65 2.5-5.5 305

HDL-150E 120 126-569 35-158 11-52 800-1500 60 2.5-6 381

HDR-150E 120 72-576 20-160 4-38 800-1300 65 2.5-5.5 381

HDL-200E 120 72-1080 20-300 8-45 500-1100 74 3-6 457

HDL-250E 120 144-1800 40-500 6-48 500-1000 73 3-10 550

HDL-300S 560 568-2538 130-705 8-60 400-950 79 2-10 653

HDLR-300S 560 432-1900 120-528 7-41 400-800 81 3-8 653

HDL-350S 560 650-2800 180-780 10-59 400-840 81 3-10 736

HDR-350S 560 720-2844 200-920 10-41 400-700 86 3-7 736

HDL-400S 560 756-3312 210-920 7-37.5 300-600 85 2-8 825

HDR-400S 560 720-3312 200-920 7-51 300-700 80 2-10 825

HDL-450ST 560 1080-4356 300-1210 9-40 300-550 87 3-10 933

HDR-450ST 560 1008-4356 280-1210 9-48 300-600 80 2-9 933

HDL-550TU 1200 1980-7920 560-2200 10-50 250-475 86 4-10 1213

Note: Quantity range recommended: 50%Q’≤Q≤100%Q’(Qâ €™ Appropriate to capacity at highest efficiency point).

2 - NPSH: appropriate to point Q recommended at highest speed.
