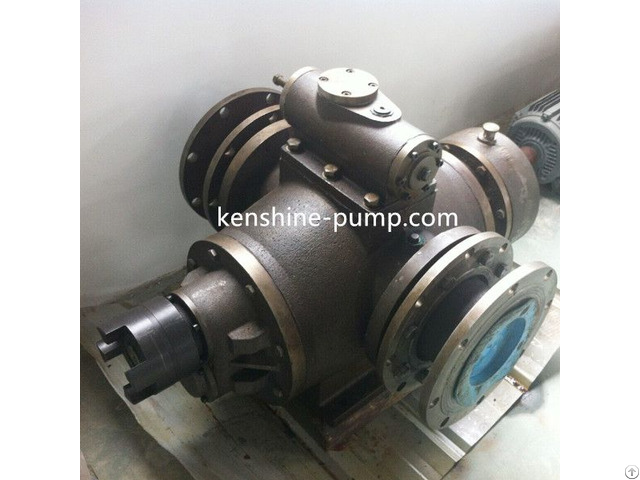

Horizontal External Bearing Twin Screw Pump - China

Horizontal External Bearing Twin Screw Pumps

Advantages：

1 - Conveying liquid is stable, no pulsation, no stirring, small vibration, low noise.

2, double screw pump has a strong self-priming performance, multi-phase mixed transport, gas rate is not higher than 80%, sand content is not higher than 500g/m3.

3, external bearing structure, using independent lubrication, can transport a variety of non-lubricating medium

4, the use of synchronous gear drive, two rotors do not contact, even if a short time idling is no harm.

5, pump body with heating sleeve, can transport a variety of clean or contain solid small particles of low viscosity or high viscosity medium (general particle diameter less than 0.12-0.2mm)

6, the correct selection of materials, and even can transport a lot of corrosive media.

7, double suction structure, no axial force on the rotor.

8 twin screw pump are the use of shaft end mechanical seal or bellows mechanical seal, with long life, less leakage, wide range of application characteristics.

Performance:

1, high working pressure 4.0mpa

2, flow range 1 ~ 1000m3/h

3, the temperature range of -20 ~ 120℃

4, medium viscosity 1 ~ 3000mm2/s, reduce the speed can reach 106mm2/s

Double screw pump medium viscosity has a greater impact on the performance of the double screw pump, the nominal displacement of the pump refers to the displacement under specific viscosity conditions, in order to ensure that the pump can work in high efficiency, in the test is not sufficient, it is recommended to choose the speed according to the following viscosity conditions: medium viscosity cSt < 400 speed R /min 1500; Medium viscosity cSt 400 ~ 1200 speed r/min 1000; Medium viscosity cSt 1200 ~ 3600 speed R /min 750 twin screw pump, Application

1, oil field: used as oil, gas, water, micro fine solid particles and other multi-phase mixed transport pump and crude oil transport pump.

2, shipbuilding industry: used for Marine loading pump, ship bottom sweep tank and sewage treatment, host lubrication pump, fuel pump.

3, petrochemical industry: used as a variety of resins, pigments, paraffin wax, paint, ink, latex, all kinds of oil, crude oil, heavy oil and other loading and transportation pump.

4, thermal power plant: used as heavy oil, crude oil transport pump, host lubricating oil pump.

5, food industry: used as alcohol, honey, syrup, juice, animal and vegetable oil, milk, soy sauce transport pump.
