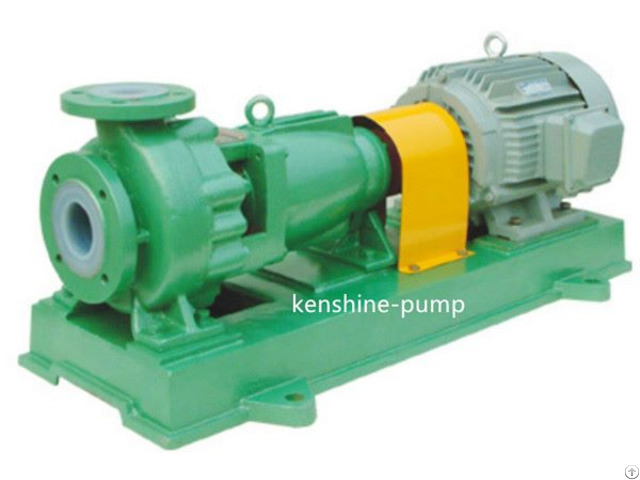

Ihf Single Stage End Suction Fluoroplastic Liner Pump - China

IHF single stage end suction fluoroplastic alloy chemical centrifugal pump is designed and produced according to international standards of non-metal pumps.

The pump body adopts metal shell lined FEP/F46 material.

The pump cover, impeller and shaft sleeve are all formed by fluorine plastic inserted with metal by sintering and pressing.

The shaft seal is filled with tetrafluoride material (PTFE) and the inlet and outlet are all strengthened by cast steel body lined with FEP.

Features:

corrosion resistance, abrasion resistance, high temperature resistant, not aging, high mechanical strength, smooth operation, reasonable structure, advanced, sealed performance is reliable, easy disassembly maintenance, long life and other advantages, Application:

The pump is widely used in chemical, pharmaceutical, oil, electric power, metallurgy, smelting, electroplating, dye, pesticide, papermaking, food, textile and other industries, in 85 ℃ ~ 200 ℃ temperature under the condition of long-term conveying

Handle the any concentration of sulfur acid, strong alkali, salt, acid, hydrofluoric acid, aqua regia, strong oxidant, organic solvents, strong corrosive medium, such as reducing agent.

Performance range

Flow: 4.5 ~ 200m3/h;

Head: 2 ~ 125m;

Speed: 2900rpm /1450rpm;

Power: 0.55 ~ 110KW;

Inlet diameter: 32 ~ 200mm;

Maximum working pressure: 1.6mpa.

Model significance:

For example: IHF80-65-160 - a

IH- international standard chemical centrifugal pump

F- flow parts are fluoroplastics

80- suction inlet diameter (mm)

65- outlet diameter (mm)

Nominal diameter of impeller (mm)

A- impeller diameter is cut for the first
