Iso5199 Asme Standard Wpp Long Coupled Chemical Pumps - China

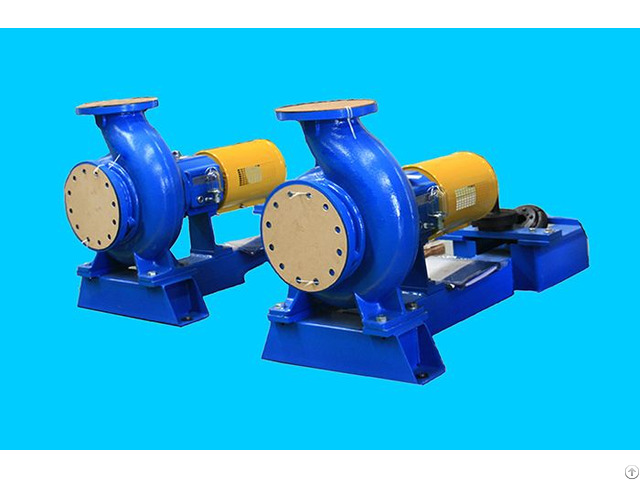

ISO5199/ASME standard WPP long coupled chemical pumps ISO 5199 &ASME B 73 Pump

chemical pump

Petrochemical process pump

Chemical process pump

Type ：API610 OH1

Standard ：ISO5199 / ISO2858 Parameter Capacity： Q ～ 9000 m³/h Heads H ～ 160 m Temperatures：T -20 ℃ ～ 180 ℃

Pressures： P ～ 2.5 MPa Applications

Clean or contaminated, low temperature or high temperature, chemical neutral or corrosive liquids and various sizes;

Petrochemical, chemical industry, coal chemical industry, refinery, pulp and paper, district heating, flue gas desulphurization and general.

Feature

Single stage radial impeller, horizontal, radial split volute and mounting feet.

Axial suction, radial discharge, suction and discharge flange pressure level is the same.

The appearance size and performance are satisfied and exceed the ISO2858 requirements.

The design standard is ISO5199/ASME B73.1M.

For the medium containing gas, the pump can be built in or outside the exhaust device to ensure the stability of the transport.

The special design of the dynamic seal can be applied to a variety of complex medium conditions, and the special design can reduce the operating cost of the seal.

Type WPP/T long coupled wear resistant end suction single stage centrifugal pumps are used for industrial abrasive slurry application to ensure process reliability, high efficiency and low operating costs.

For the most abrasive and erosive pumping applications, such as lime milk and mud, and coating pigments.

Specially designed wear-resistant pumping hydraulics (W) with wear-resistant materials deliver six to eight times longer life time than conventional pumps.

Main benefits

Long and trusted experience in all industrial segments

Excellent performance

Exceeds standard requirements of international ISO 5199 standard

Suitable for the most demanding industrial applications

Unique, patented and superior design features minimize life cycle costs

Quick and easy installation, safe operation, easy maintenance and service

Main applications

Abrasive and viscous liquids

Abrasive fibrous slurries

Abrasive non-fibrous slurries

Abrasive large solids and gas containing liquids and slurries

Gas containing slurries in self-priming applications

Main design features

Versatile, reliable, high-efficiency hydraulics and material options

Innovative shaft sealing solutions for reliable operation and reduced costs

Innovative and reliable degassing and self-priming units

Reliable, simplified and heavy-duty bearing unit with a variety of different lubrication options

Modular design minimize the spare part inventory costs

Model Size

WPP22-32 WPP22-50 WPP23-50 WPP32-80 WPP32-100 WPP32-125

WPP33-100 WPP44-150 WPP44-200 WPP53-100 WPP53-150 WPP53-200

WPP53-250 WPP54-400 WPP55-300 WPP61-600
