Lw Wl Vertical Effluent Pump - China

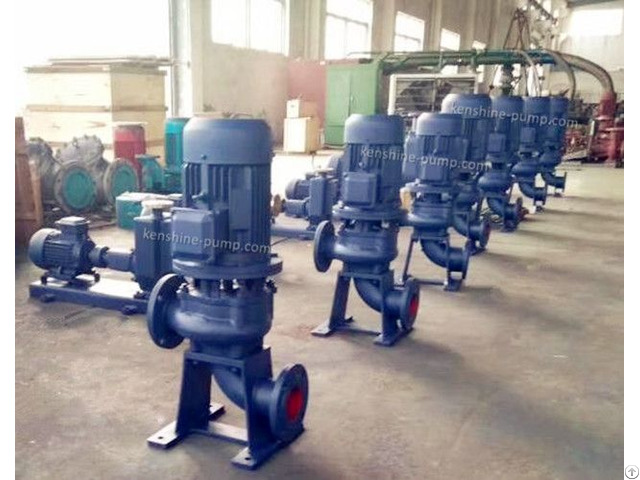

LW Vertical not-clogging sewage pump is used to transfer the waste water with fiber diameter 5 times as pump diameter or the solid particles diameter 50% as the pump diameter.

LW vertical not-clogging sewage pump adopts a unique single (double) channel impeller and improves the sewage discharge for the not-clogging.

LW sewage pump has two structural forms.

One is the motor and pump directly connected coaxial and the other is the use of coupling connection.

The motor adopts a standard vertical motor.

Its structure diagram is as follows.

Each structure form has two base connection forms.

One is the horizontal suction of the inlet and has the function of turning Angle.

It can be used according to the requirements .

Even the outlet Angle can be set to 0., 90., 180, 270, easy to connect the pipeline and the other is the inlet axial suction and belongs to vertical installation.

Characteristics: 1 - The not-clogging impeller with big flow channel can transfer the waste water with fiber diameter 5 times as pump diameter or the solid particles diameter 50% as the pump diameter.

2 - The motor with high efficiency and energy-saving 3 - Single face mechanical seal( tungsten carbide material has the advantages of wear-resisting and corrosion-resisting etc) can continuously work more than 8000 hours.

4 - LW pump is directly connected with motor by the shaft and the equipment structure is compact and discharging performance is steady.

5 - The advanced mode with high efficiency and low noise etc.

6 - When the motor is with protective sleeve and the pump can be used outdoor without pump room.

So the use cost for the pump is economic.

7 - LW pump and motor is as the whole structure for the convenient installation.

Application: Irrigation and drainage fields and various water conservancy projects, all kinds of farms, slaughter houses, slaughter yard, septic tank, etc and Municipal engineering, construction site.

Performance range for LW pump: Flow rate: 5 to 3600m3/h

Head: 5 to 60m

Speed: 980 to 2900r/min

Pump inlet and outlet: φ25 to φ500

Working pressure: ≤1.0MPa
